Description

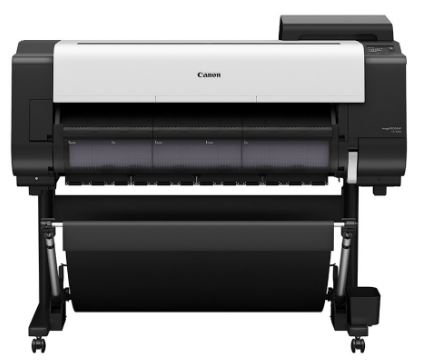

The Canon imagePROGRAF TX-3200 is a professional 36 inch A0 wide format printer with stand designed for high volume CAD drawings, technical plans, GIS maps and vivid in house poster printing. Built for architecture, engineering, construction and busy printrooms, it combines precision pigment ink printing with an efficient, easy to use workflow.
Smart automatic roll loading, fast A1 printing and an innovative sub ink tank system help keep large format work moving. This stand configuration is ideal for organisations that want high quality printing in house and the flexibility to add optional paper handling accessories as their needs grow.
- 36 inch A0 wide format printing with stand included
- Fast A1 CAD drawings in approximately 17 seconds in Canon Fast mode
- Five colour pigment ink system for fine CAD lines and rich poster colours
- Maximum print resolution of 2400 x 1200 dpi
- Automatic media loading and intelligent paper detection
- Hot swap ink replacement for efficient print workflows
- 500 GB hard disk for managing print jobs
- 4.3 inch colour LCD touchscreen
- LAN, Wi-Fi, USB and supported mobile print options
High Volume Printing for Plans and Posters
The TX-3200 supports sharp detail on technical drawings while producing engaging posters and presentation graphics. Canon's enhanced Magenta ink and improved colour processing are designed to bring richer colour output to wide format business documents. The combination of high print speed and reliable media handling suits workplaces producing plans and posters throughout the day.
Key Features
- Productive A1 CAD output: Approximately 17 seconds per A1 CAD page in Fast mode on plain paper, excluding processing and data transfer.
- Automatic media handling: Built in sensors detect supported roll media type, width and length to simplify loading.
- Five pigment colours: Matte Black, Black, Cyan, Magenta and Yellow create crisp line drawings and colourful posters.
- Hot swap ink: A sub ink tank supports ink replacement with minimal disruption to suitable print jobs.
- High definition output: Up to 2400 x 1200 dpi maximum print resolution.
- Convenient office connectivity: Wired networking, Wi-Fi, USB and supported mobile printing.
- Professional print workflow: 500 GB hard drive and Canon print software support more complex projects.
- Flexible expansion: Optional RU-32 roll unit and stacker options are available for additional paper handling.
Media, Ink and Printer Compatibility
This printer supports large format media up to 36 inches for technical plans, engineering drawings, maps and compatible poster materials. Canon uses the PFI-110, PFI-111, PFI-310, PFI-311, PFI-710 and PFI-711 tank families depending on ink colour and capacity. Choose the exact model and colour listed for your TX-3200 when ordering replacements.
Printer configuration: TX-3200 printer with stand. The optional roll unit and stacker can be added separately. If you also require large format scanning and copying, explore the Canon TX-3200 MFP with Z Series scanner.
Product Specifications
| Brand | Canon |
| Model | imagePROGRAF TX-3200 |
| Bundle configuration | 36 inch printer with stand |
| Functions | |
| Print technology | Five colour pigment inkjet |
| Maximum media width | 36 inches (A0 class) |
| Maximum print resolution | 2400 x 1200 dpi |
| A1 CAD print speed | Approximately 17 seconds in Fast mode on plain paper, excluding processing and transfer |
| Supported ink colours | Matte Black, Black, Cyan, Magenta and Yellow |
| Supplied ink tanks | 160 ml Black, Cyan, Magenta and Yellow; 330 ml Matte Black |
| Supported replacement ink sizes | 160 ml, 330 ml and 700 ml |
| Connectivity | Ethernet LAN, Wi-Fi, USB and supported mobile printing |
| Printer display | 4.3 inch colour LCD touchscreen |
| Internal hard drive | 500 GB |
| Media loading | Automatic roll media loading and detection |
| Borderless printing | Supported on suitable media and sizes |
| Included stand | Yes |
| Optional dual roll unit | Supported, available separately |
| Optional stacker | Supported, available separately |
| Printer with stand size | 1390 x 984 x 1168 mm with basket open |
| Printer with stand weight | Approximately 103 kg excluding ink and printhead |
Ideal For
- Architecture and building design teams printing large CAD drawings and A0 plans
- Engineering firms producing detailed technical line drawings and specifications
- Construction and surveying offices working with site plans and maps
- Local government and GIS teams printing large format mapping
- Schools, universities and business printrooms producing posters and presentations
What's Included?
- 1 x Canon imagePROGRAF TX-3200 36 inch five colour printer
- 1 x Canon printer stand and standard output basket
- 1 x Canon printhead and installed maintenance cartridge
- Canon supplied ink tanks: 160 ml Black, Cyan, Magenta and Yellow; 330 ml Matte Black
- Canon roll holder set with supplied core adapters
- Power cable and standard setup documentation
Optional accessories such as a second roll unit, stacker and scanner are available separately.
Related Canon Ink and Accessories
- Genuine Canon PFI-110BK Black Ink 160 ml
- Genuine Canon PFI-110C Cyan Ink 160 ml
- Genuine Canon PFI-110Y Yellow Ink 160 ml
- Genuine Canon PFI-310MBK Matte Black Ink 330 ml
- Genuine Canon PF-06 Printhead
- Canon RU-32 Optional Roll Unit
Compare the printing only configuration with the Canon TX-3200 MFP printer, scanner and AIO PC bundle.
Why Buy From OzToner?
- Australian owned business
- Fast Australia wide shipping
- Local customer support
- Competitive pricing
- Experienced printer and IT specialists
Frequently Asked Questions (FAQ)
Is the Canon TX-3200 suitable for A0 technical drawings?
Yes. Its 36 inch wide format printing capability is designed for A0 drawings, CAD plans, GIS mapping and poster production.
How fast does it print an A1 CAD drawing?
Canon rates the TX-3200 at approximately 17 seconds per A1 CAD drawing in Fast mode on plain paper. Processing, data transfer and preparation time are additional.
Does the TX-3200 include a stand?
Yes. This configuration includes the matching Canon stand.
Does this version include a scanner?
This configuration focuses on high volume printing. For print, scan and copy functions, consider our Canon TX-3200 MFP bundle with scanner and AIO PC.
What type of ink does the TX-3200 use?
It uses Canon five colour pigment ink, including a dedicated Matte Black. Compatible ink tank sizes include 160 ml, 330 ml and 700 ml depending on the colour. The current model uses the PFI-111 series for Magenta.
Can I connect this printer to an office network?
Yes. Canon lists wired LAN, Wi-Fi, USB and supported mobile printing.
Can I add a second media roll?
Yes. The optional Canon RU-32 roll unit enables an additional roll configuration when purchased separately.
Is this printer useful for posters as well as CAD work?
Yes. Canon's updated Magenta ink and image processing support colour posters and presentations alongside technical line drawings.
