Description

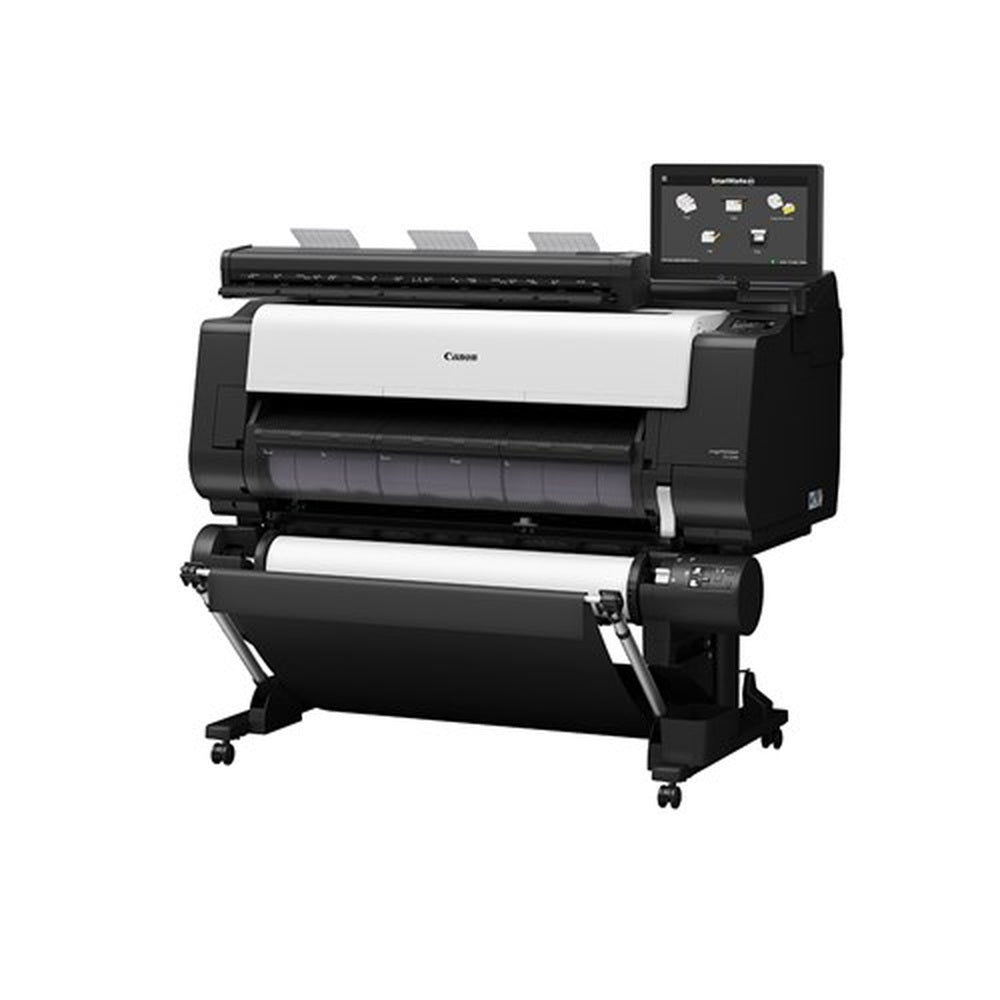

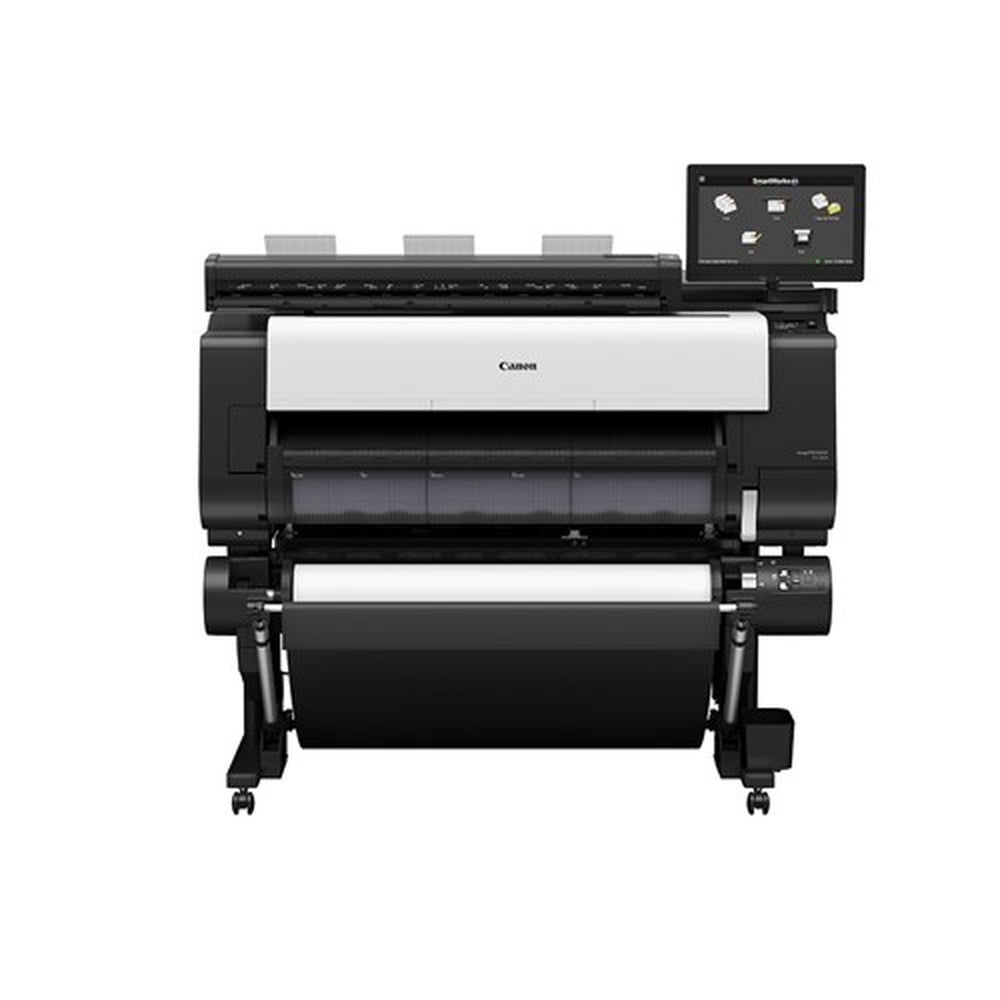

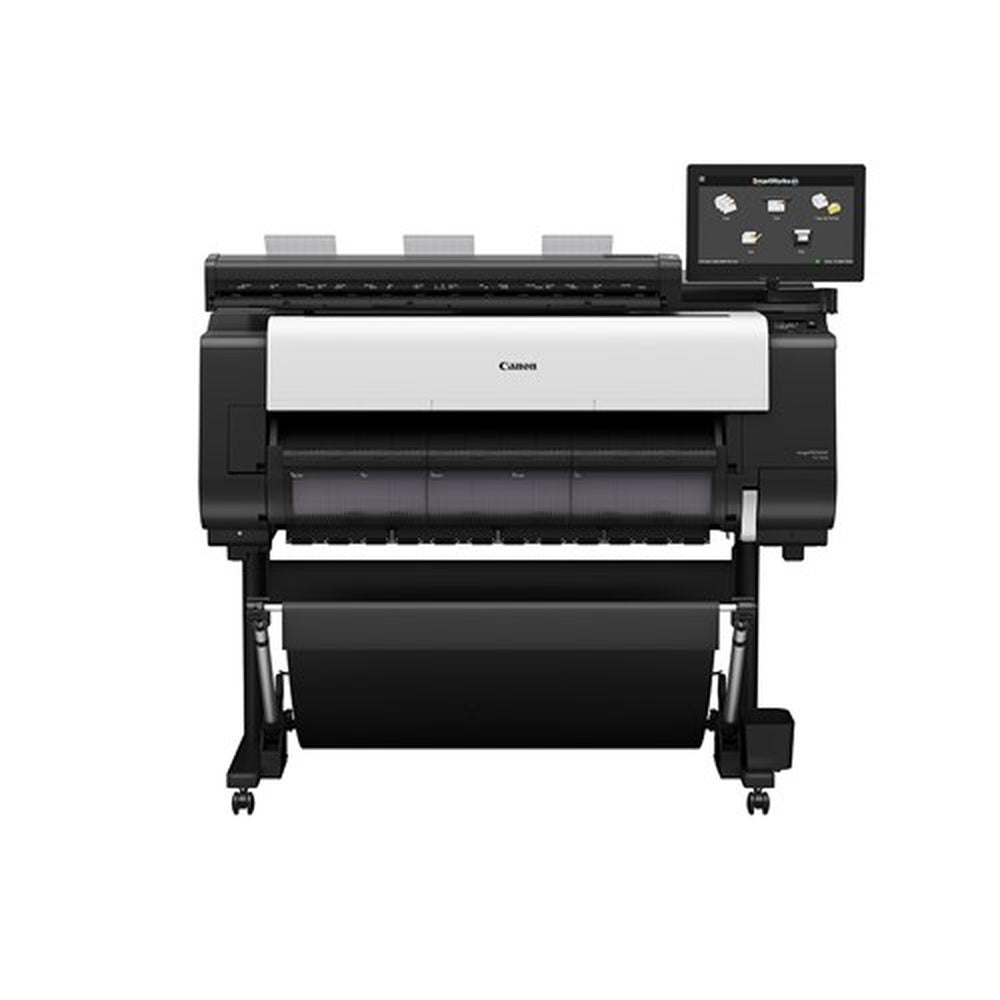

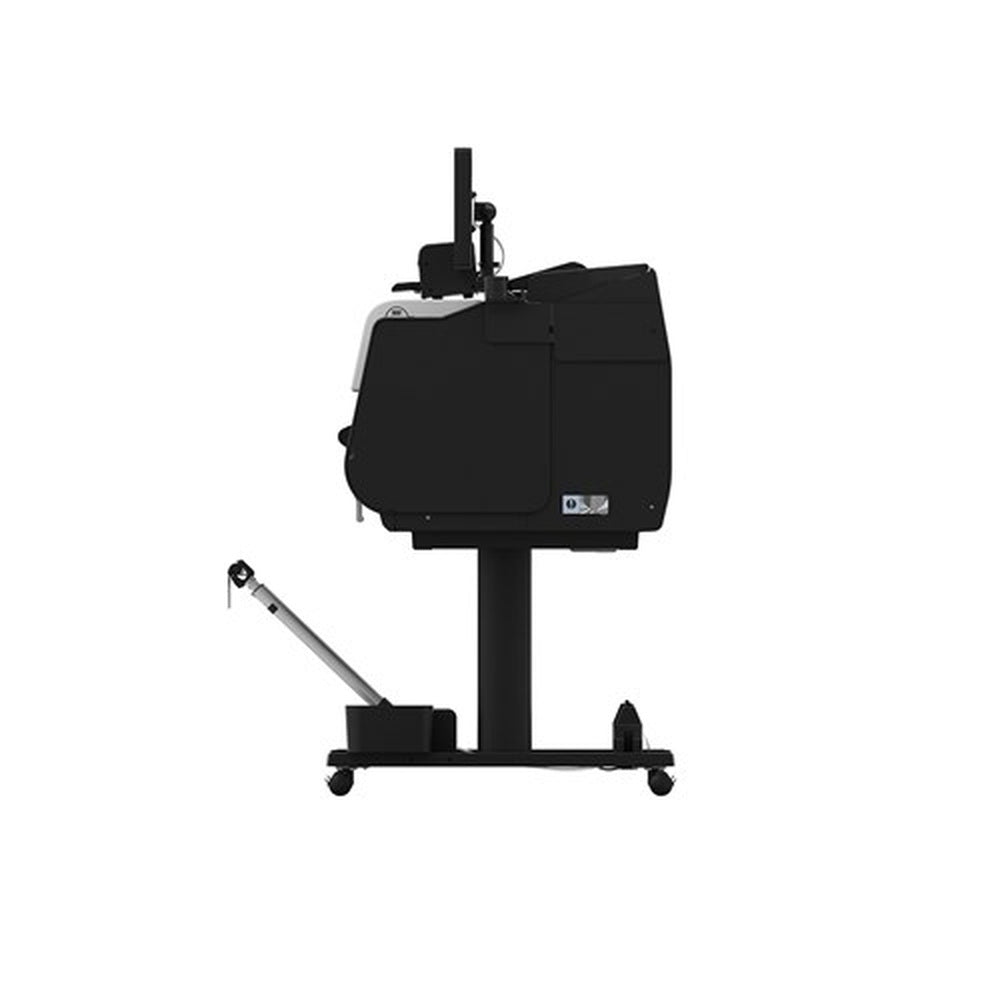

The Canon imagePROGRAF TX-3200 MFP is a high productivity 36 inch A0 wide format print, scan and copy system for busy architectural, engineering, design and construction workplaces. This complete configuration combines a five colour TX-3200 printer with its stand, a 36 inch Z Series scanner and a 15.6 inch touchscreen All in One PC to bring technical printing and large document capture into one efficient workspace.
Produce precise CAD drawings, maps and technical plans, while also creating rich colour posters and presentations. Canon's automated media handling and SmartWorks MFP scanning workflow help simplify demanding printroom tasks.
- Complete wide format multifunction bundle with printer, Z Series scanner, stand and AIO PC
- 36 inch A0 printing for CAD drawings, GIS maps and presentation posters
- Print, scan, copy and edit large format documents
- A1 CAD prints in approximately 17 seconds in Canon fast print mode on plain paper
- Five colour pigment ink system for precise technical lines and rich poster colour
- 2400 x 1200 dpi maximum printing resolution
- Smart automatic media loading and detection
- 15.6 inch AIO touchscreen with SmartWorks MFP software
- Hot swap ink system, wired network, Wi-Fi, USB and supported mobile connectivity
Made for High Volume Plans and Presentation Printing
The TX-3200 MFP makes it practical to bring large format technical work in house. Its advanced five colour pigment ink system produces detailed line drawings and colourful posters. Canon's enhanced Magenta ink and image processing help create vivid graphics, while the 500 GB hard disk supports an efficient workflow with complex files.
Key Features
- Efficient A1 output: Print an A1 CAD drawing in approximately 17 seconds in Canon's fast plain paper mode, excluding processing and transfer time.
- 36 inch Z Series scanner: Capture large technical documents, then print, copy or save the files.
- 15.6 inch touchscreen PC: Convenient review and editing with SmartWorks MFP software.
- Automatic paper setup: Smart roll feeding detects compatible media width, type and length.
- Flexible ink replacement: Hot swap ink tank design keeps supported print workflows moving during ink changes.
- Five pigment colours: Matte Black, Black, Cyan, Magenta and Yellow for technical detail and vibrant graphics.
- Professional networking: Wired LAN, Wi-Fi, USB and supported mobile connectivity.
- Flexible expansion: Optional additional roll feeding and stacker accessories can support future workflow growth.
Scanning, Copying and Document Management
The included 36 inch scanning system and All in One PC offer a straightforward way to digitise large documents. SmartWorks MFP allows users to review and edit scans and save files directly to USB using TIFF, PDF or JPEG formats. It is well suited to teams managing paper drawings, site plans and technical archives.
Printer Compatibility and Supported Media
Designed for professional up to 36 inch wide format media, including supported roll stock for A0 plans, CAD drawings, GIS maps and colour posters. Borderless printing is available on suitable paper types and sizes. The standard configuration includes the printer stand; a second roll unit and dedicated stacker are separate optional accessories.
Product Specifications
| Manufacturer | Canon |
| Product | imagePROGRAF TX-3200 MFP |
| Supplier Bundle Code / SKU | BDL_TX3200MFP |
| Product Reference | CTX-3200MFP |
| Printer Type | 36 inch wide format pigment inkjet multifunction system |
| Functions | Print, Scan, Copy, Edit |
| Print Width | Up to 36 inches (A0 class) |
| Printing Resolution | Up to 2400 x 1200 dpi |
| Ink System | Five colour pigment ink (Matte Black, Black, Cyan, Magenta, Yellow) |
| Speed | Approximately 17 seconds per A1 CAD drawing in fast mode on plain paper; excludes processing and transfer time |
| Scanner | 36 inch Z Series wide format scanner |
| Scanner Workflow | SmartWorks MFP; scan output includes TIFF, PDF and JPEG formats |
| AIO PC / Scan Interface | 15.6 inch touchscreen |
| Printer Control Panel | 4.3 inch LCD touchscreen |
| Connectivity | LAN, Wi-Fi, USB and supported mobile printing |
| Hard Disk | 500 GB |
| Media Handling | Automatic roll media loading and detection |
| Stand | Included |
| Additional Roll Unit | Optional, not included |
| Full Front Stacker | Optional, not included |
Ideal For
- Architectural studios producing A0 plans, construction drawings and elevations
- Engineering and CAD design teams with regular high volume technical print requirements
- Construction and surveying offices that need print, scan and copy workflows
- GIS, planning and infrastructure departments handling large maps
- Education, signage and presentation teams producing in house colour posters
What's Included?
- 1 x Canon imagePROGRAF TX-3200 36 inch five colour large format printer
- 1 x Canon printer stand
- 1 x 36 inch Z Series scanner
- 1 x All in One PC with 15.6 inch touchscreen and SmartWorks MFP software
- Canon supplied ink set: four 160 ml tanks (Black, Cyan, Magenta and Yellow) and one 330 ml Matte Black tank
- Standard Canon printhead, maintenance cartridge, roll holder, power cord and setup materials as specified for the bundle
Optional accessories: An additional roll unit and full front stacker are not part of this bundle unless purchased separately. Some product images may illustrate optional paper handling configurations.
Related Canon Supplies and Accessories
- Genuine Canon PFI-110 Black Ink 160 ml
- Genuine Canon PFI-110 Cyan Ink 160 ml
- Genuine Canon PFI-110 Yellow Ink 160 ml
- Genuine Canon PFI-310 Matte Black Ink 330 ml
- Genuine Canon PF-06 Printhead
- Canon RU-32 Optional Roll Unit
For replacement Magenta ink, select the current Canon TX-3200 specific tank reference rather than relying on part numbers for earlier TX models.
Why Buy From OzToner?
- Australian owned business
- Fast Australia wide shipping
- Local customer support
- Competitive pricing
- Experienced printer and IT specialists
Frequently Asked Questions (FAQ)
What is included in this TX-3200 MFP bundle?
The bundle combines the TX-3200 large format printer, stand, 36 inch Z Series scanner and 15.6 inch AIO touchscreen computer. Standard supplied Canon ink tanks are also included.
Can it print A0 drawings and posters?
Yes. The 36 inch printing width is suitable for A0 technical plans, CAD drawings, maps and posters.
How fast does it print A1 plans?
Canon states approximately 17 seconds for an A1 CAD drawing in fast mode on plain paper. Processing, transfer and preparation times are additional.
Does this model scan and copy?
Yes. The scanner and SmartWorks MFP workflow enable wide format scanning, copying and file handling.
Is the second roll unit included?
No. The additional roll unit is optional and can be purchased separately. Images illustrating alternative configurations may show optional accessories.
Does it use original Canon pigment ink?
Yes. The TX-3200 uses a five colour pigment ink system. Replacement tanks are available in selected 160 ml, 330 ml and 700 ml sizes; select the specified colour and model reference.
Can scanned documents be saved to USB?
Yes. SmartWorks MFP supports saving scans to USB in common formats including TIFF, PDF and JPEG.
Can I connect it to an office network?
Yes. Canon lists LAN, Wi-Fi and USB connectivity, together with supported mobile printing.
