Description
FEATURES
Black & White Laser Printer
Duplex (2-sided) Printing: Integrated Duplex
Print Speed: Up to 47 ppm
Recommended Monthly Page Volume: 2000 - 15000 pages
PRODUCT DESCRIPTION

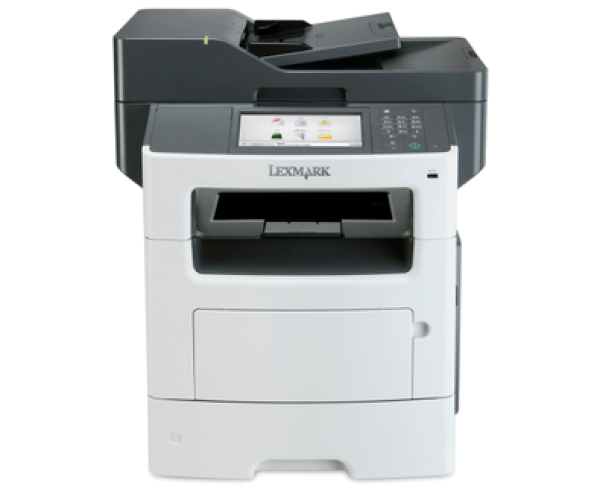

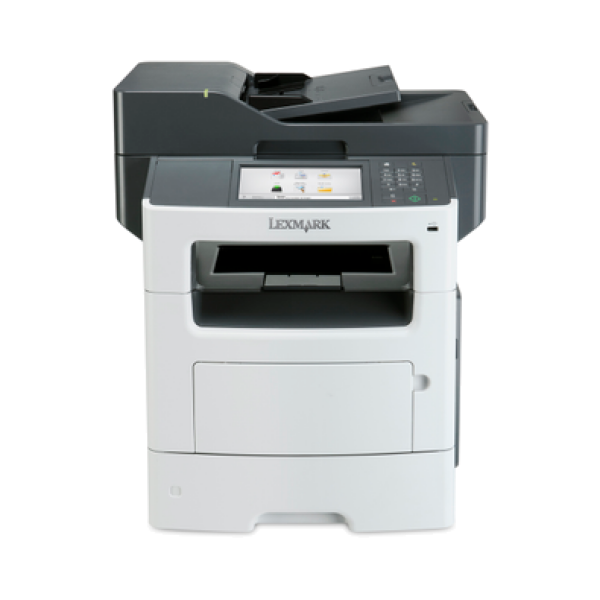

The Lexmark MX610de MFP with print, copy, email and scan functions prints up to 50 ppm. Included are 2-sided printing and 650 sheets of input.
Smart and Easy to Use
A vibrant 7-inch color touch screen provides access to preinstalled productivity solutions and lets you operate the system through smart and intuitive navigation.
Work Smarter Not Harder
If you can use a mobile phone application, you can use our pre-loaded solutions. Touch the screen and access shortcuts that let you scan, print or send emails and other business-critical documents fast.
Faster Processing
Improve your print, scan and copy speeds by taking advantage of up to 3 GB of upgradable memory, an 800 MHz dual-core processor and Gigabit Ethernet.
Keep Jobs Moving
With a maximum input capacity of up to 2,300 sheets and an ultra high yield toner cartridge, you won't have to add paper or change cartridges as often.
Get Work Done Quickly
Enjoy print speeds up to 50 pages per minute, plus print or copy your first page in as little as 6.5 seconds.
In the Box
Power cable(s)
Statement of limited warranty / guarantee
RJ-11 Phone cable or adaptor (country dependent)
Lexmark MX611de multifunction laser printer
Stability sheet and safety sheet or booklet
Lexmark Cartridge Collection Programme information
Software and documentation CD
Setup guide or sheet (network and local attachment)
Up to 7,500 pages* starter return programme toner cartridge
Return programme imaging unit
*Average Continuous Cartridge Yield in one-sided (simplex) mode 7,500 standard pages. Declared yield value in accordance with ISO/IEC 19752.
Ethernet, USB or parallel cable not included.
Box contents may vary by country and/or reseller. Subject to change without notice.
General Specs
Part no. 35S6700/35S6736
Print Technology
Black & White Laser Printer
Function
Copying
Color Scanning
Printing
Network Scanning
Faxing
Workgroup Size
Medium Workgroup
Display
Lexmark e-Task 7-inch (17.8 cm) colour touch screen
Media Sizes Supported
A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, Statement, Executive, Universal, DL Envelope, Folio, 10 Envelope
Included Paper Handling
100-Sheet Multipurpose Feeder, 250-Sheet Output Bin, Integrated Duplex, 550-Sheet Input
Standard Ports
Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), Rear USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot
Size (mm - H x W x D)
561 x 489 x 479 mm
Weight
23.6 kg
Packaged Size (mm - H x W x D)
673 x 572 x 599 mm
Packaged Weight, kg
28 kg
Copying
Copy Speed
Up to:
Black: 47 cpm1 (A4)
Copy Speed Duplex
Up to:
Black: 23 spm1 (A4)
Time to First Copy
as fast as:
Black: 6.5 seconds
Reduce / Enlarge Range
25 - 400 %
Faxing
Modem Speed
ITU T.30, V.34 Half-Duplex, 33.6 Kbps
Fax Transmission Speed
< 3 seconds per page
Printing
Print Speed
Up to:
Black: 47 ppm (A4)
Print Speed Duplex
Up to:
Black: 20 spm (A4)
Time to First Page
As fast as:
Black: 6.5 seconds
Print Resolution
Black: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi), 600 x 600 dpi, 1200 IQ (1200 x 600 dpi)
Duplex
2-sided:
Integrated Duplex
Printable Area
metric: 4.0 mm of the top, bottom, right and left edges (within)
Scanning
Scanner Type / ADF Scan  Â Ã‚Â
Flatbed scanner with ADF
RADF (reversing Duplex)
Scan Area
mm:
215.9 x 355.6 mm (Maximum)
A4/Ltr Simplex Scan Speed / Scan Speed (A4/Ltr
Up to:
Black: 45 / 48 sides per minute
Colour): 30 / 32 sides per minute
A4/Ltr Duplex Scan Speed / Duplex Scan Speed (A4/Ltr
Up to:
Black: 20 / 21 sides per minute
Colour): 13 / 14 sides per minute
Scan Technology
CCD
Optical Scanning Resolution
up to 1200 X 600 ppi (black)
up to 600 X 600 ppi (color)
Scan File Formats
Send as:
XPS, TIFF, Highly compressed PDF (1GB RAM and hard disk required), Archival PDF (A-1a, A-1b), Secure PDF, Searchable PDF (optional OCR with 1GB RAM and hard disk required), PDF, JPEG, JPG
Scan Destinations
e-mail, Lexmark Document Solutions Suite (LDSS), USB or Network connected computer, USB Flash drive, FTP
ADF
50-Sheet Automatic Document Feeder
ADF Paper Input Capacity / ADF Paper Output Capacity
Up to: 50 pages 75 gsm bond
Up to: 50 pages 75 gsm bond
Paper Handling
Media Types Supported
Paper Labels, Card Stock, Plain Paper, Transparencies, Envelopes, Refer to the Card Stock & Label Guide.
Finishing Option
Yes
Number of Paper Inputs
Standard: 2
Maximum: 5
Paper Input Capacity
Standard: 650 pages 75 gsm bond
Maximum: 2300 pages 75 gsm bond
650 pages 75 gsm bond
Paper Output Capacity
Up to:
Standard: 250 pages 75 gsm bond
Maximum: 250 pages 75 gsm bond
Paper Weight Range Supported
gsm:
60 - 120 gsm (Standard Tray)
Optional Paper Handling
550-Sheet Lockable Tray, Inline Stapler, 250-Sheet Tray, 550-Sheet Tray
Recommended Monthly Page Volume
2000 - 15000 pages2
Maximum Monthly Duty Cycle
Up to:
175000 pages per month3
Cartridges & Imaging
Laser Cartridge Yields
up to:
10,0004-page High Yield Cartridge
2,5004-page Cartridge
20,0004-page Extra High Yield Cartridge
Imaging Unit Estimated Yield
Up to:
60000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage5
Cartridge(s) Shipping with Product
7,5004-page Return Program Toner Cartridge
Replacement Cartridges:
Product functions only with replacement cartridges designed for use in a specific geographical region. See www.lexmark.com/regions for more details.
Hardware
Processor
Dual Core, 0.8 MHz
Memory
Standard: 1024 MB
Maximum: 3072 MB
Hard Disk
Option available
Printer Languages
Standard:
ÃPCL 5e Emulation, PCL 6 Emulation, Microsoft XPS (XML Paper Specification), Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint
Fonts and Symbol Sets
2 PCL bitmap fonts, OCR-A, OCR-B scalable PCL 5e fonts, For more information, refer to the Technical Reference., 84 scalable PCL fonts, 91 scalable PostScript fonts, 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide, 5 PPDS bitmap fonts, 39 scalable PPDS fonts
Touch Screen Display
Yes
Connectivity
Direct USB
Yes
Ethernet Network
Yes
Network Protocol Support
TCP/IP IPv6, TCP/IP IPv4, AppleTalk, TCP, UDP
Network Printing Methods
LPR/LPD, Direct IP (Port 9100), Pull Printing, Microsoft Web Services WSD, Secure IP (Port 96xx), FTP, TFTP, Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)
Network Management Protocols
 Â Ã‚ DHCP, APIPA (AutoIP), BOOTP, RARP, mDNS, IGMP, Bonjour, WINS, DDNS, SNMPv3, SNMPv1, SNMPv2c, Telnet, NTP, ICMP, HTTP, DNS, ARP, HTTPs (SSL6/TLS), Finger
Network Security
IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS
Optional Local Ports
Internal 1284-B Bidirectional Parallel, Internal RS-232C serial
Optional Network Ports
Internal MarkNet N8350 802.11b/g/n Wireless
UNSPSC Code
43212110
Country of Origin
China (PRC)
License/Agreement Terms
Printers are sold subject to certain license/agreement conditions. See www.lexmark.com/printerlicense for details.
Warranties
Product Warranty
1-Year Onsite Service
