HP LaserJet Pro M570dw Wireless Colour Multifunction Printer (CZ272A)

• Print, Scan, Copy, Fax
• Automatic Double Sided Printing
• Up to 600 x 600 dpi Print
• 8.89cm Colour Touchscreen
• USB, Network & Wireless
• As Fast as 10.5 Seconds First page
• Up to 30ppm Mono Print, Up to 30ppm Colour Print
• HP PCL 6, HP PCL 5c, HP Postscript Level 3, PDF (v 1.7), AirPrint
• 515mm (W) x 500mm (D) x 538mm (H) - 40.8kg
• 100 Sheet Multipurpose Tray, 250 Sheet Input Tray
• 800MHz Processor
• 256MB RAM
• Up to 33.6Kbps Fax
• Windows & Mac Compatible
• HP 507A Black Toner Cartridge (5,500 pages) / HP 507A CMY Toner Cartridge (6,000 pages)
• HP 507X Hi-Cap Black Toner Cartridge (11,000 pages)

OVERVIEW

Perform print jobs faster, you can achieve impressive colors and benefit from the fast installation and fast connection. HP ePrint allows you to print on your smartphone or tablet PC. Protect natural resources and recycle empty toner cartridges.

Increase your performance
- Increase Productivity and perform the scan jobs faster through with the Dualhead scanner, the double sided scanning in a single pass. Print documents with a speed of 30 pages per minute. You can trust the reliable indication of the recommended monthly page volume of 1500 to 4000 pages

You benefit from a fast, simple installation and stay connected
Fast commissioning with HP Smart Install-installation of the printer without CD. Use the HP Auto Wireless Connect for the wireless configuration of your network. HP ePrint allows you to print on your smartphone or tablet PC. Send prints of devices without network

Protect the environment
Save energy with the HP Auto-ON/Auto-off, Instant-on copy and Instant-on technology. Automatic two-sided printing saves resources and paper.

SPECIFICATIONS

Functions

Functions

• Print, copy, scan, fax

Multitasking supported

• Yes

Printing specifications

Print speed black:

Normal: Up to 30 ppm
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

Print speed color:

Normal:Up to 30 ppm
(Measured using ISO/IEC 24734, excludes first set of test documents. For more information see hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.)

First page out (ready)

Black: As fast as 10.5 sec
Color: As fast as 10.5 sec
(Exact speed varies depending on the system configuration, software application, driver and document complexity.)

Duty cycle (monthly, A4)

Up to 75,000 pages
(Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.)

Recommended monthly page volume

1500 to 4000
(HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.)

Print technology

• Laser

Print quality black (best)

• Up to 600 x 600 dpi

Print quality color (best)

• Up to 600 x 600 dpi

Print Resolution Technologies

HP ImageREt 3600

Print languages

• HP PCL 6, HP PCL 5, HP postscript level 3 emulation, PDF (v 1.7), AirPrint™ compatible

Display

• 3.5" (8.89 cm) touchscreen, LCD (color graphics)

Processor speed

• 800 MHZ

Automatic paper sensor

• No

Replacement cartridges

• HP 507A Black LaserJet Toner Cartridge (yield ~5500 pages) CE400A

• HP 507X Black LaserJet Toner Cartridge (yield 11000 pages) CE400X, HP 507A Cyan LaserJet Toner Cartridge (yield 6000 pages) CE401A

• HP 507A Yellow Toner Cartridge (yield 6000 pages) CE402A

• HP 507A Magenta Toner Cartridge (yield 6000 pages) CE403A

(Note: ships with preinstalled standard toner cartridges (yield ~5500 black, ~6000 cyan, magenta, and yellow pages))
(Declared yield value in accordance with ISO/IEC 19798 in continuous printing. Actual yields vary considerably based on images printed and other factors. For more information visit: hp.com/go/learnaboutsupplies)

Connectivity

HP ePrint capability

• Yes

Mobile printing capability

HP ePrint
Apple AirPrint™
Mopria™-certified
Wireless Direct Printing

Wireless capability

• Yes, built-in Gigabit 10/100/1000T Ethernet, Wi-Fi 802.11b/g/n

Connectivity, standard

• 1 Hi-Speed USB 2.0

• 1 Host USB

• 1 Gigabit 10/100/1000T Ethernet

• 1 WiFi 802.11 b/g/n

• 1 RJ-11 (Fax)

• 1 RJ-11 (Phone only)

Network ready

• Standard (built-in Fast Ethernet, WiFi 802.11 b/g/n)

Minimum system requirements

• Windows 8, Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit): 1 GHz 32-bit (x86) or 64-bit (x64) processor, 1 GB RAM (32-bit) or 2 GB RAM (64-bit), 400 MB free hard disk space, CD/DVD-ROM or Internet, USB or Network port

• Windows XP (32-bit) SP2: Pentium® 233 MHz processor, 512 MB RAM, 400 MB free hard disk space, CD/DVD-ROM or Internet, USB or Network port



• Mac OS X Mountain Lion (v 10.8), OS X Lion (10.7x), 10.6x
• 1 GB hard disk, CD-ROM/DVD-ROM or Internet, USB

Compatible operating systems

Full software installs supported on: Windows 10 (32-bit and 64-bit), Windows 8 (32-bit and 64-bit), Windows 7 (32-bit and 64-bit), Windows Vista (32-bit and 64-bit), Windows XP (32-bit) (SP2 or higher), and Windows Server 2012
Driver only installs supported on: Windows Server 2008 (32-bit and 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit) (SP3 or higher)
Mac OS X v 10.6, OS X Lion (10.7) & OS X Mountain Lion (10.8)
Linpus Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package), SuSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) (supported by the automatic installer)
HPUX 11 and Solaris 8/9
(For Windows Server 2003 32-bit and 2008 32-bit and 64-bit only the printer driver and scanner driver are installed.)

Memory specifications

Memory

256 MB

Maximum memory

256 MB

Paper handling

Paper handling input, standard

• 100-sheet multipurpose tray, 250-sheet input tray 2, 50-sheet automatic document feeder

Paper handling input, optional

Optional 500-sheet paper tray 3

Paper handling output, standard

• 250-sheet face-down output bin

Maximum output capacity (sheets)

• Up to 250 sheets

Duplex printing

• Automatic (standard)

Media sizes supported

• Tray 1: A4
• A5
• A6
• B5 (JIS)
• B6 (JIS)
• 16K
• 10 x 15 cm
• postcards (JIS single, JIS double)
• envelopes (ISO DL, ISO C5, ISO B5)
• Tray 2, optional Tray 3: A4
• A5
• B5 (JIS)
• 16K
• Automatic two-sided printing unit: A4
• A5
• B5 (JIS)

Media sizes, custom

• Tray 1: 76 x 127 to 216 x 356 mm
• Tray 2: 148 x 210 to 216 x 297 mm
• Optional 500-sheet tray 3: 148 x 210 to 216 x 356 mm
• Automatic two-sided printing unit: 148 x 210 to 216 x 356 mm

Media types

• Paper (bond, brochure, colored, glossy, letterhead, photo, plain, preprinted, prepunched, recycled, rough), postcards, transparencies, labels, envelopes

Media weight, supported

• Tray 1: 60 to 216 g/m² (plain paper), 105 to 220 g/m² (glossy paper)
• Tray 2: 60 to 163 g/m² (plain paper), 105 to 220 g/m² (glossy paper)
• Optional Tray 3: 60 to 176 g/m² (plain paper), 105 to 220 g/m² (glossy paper)
• Automatic two-sided printing unit: 60 to 163 g/m² (plain paper), 105 to 220 g/m² (glossy paper)

Media weights, supported ADF

• 60 to 90 g/m²

Scanner specifications

Scanner type

• Flatbed, ADF

Scan resolution, optical

• Up to 300 x 300 dpi (color and mono, ADF)
• Up to 1200 x 1200 dpi (mono, flatbed)

Scan size, maximum

• 216 x 297 mm

Scan size (ADF), maximum

• 216 x 356 mm

Scan size (ADF), minimum

• 127 x 177 mm

Scan speed (normal, A4)

Up to 20 ipm (b&w), up to 14 ipm (color)
(While scanning to file from ADF, default settings, save to PDF. Exact speed varies depending on the system configuration and document complexity.)

Duplex ADF scanning

• Yes, dual head duplexing, color scan

Automatic document feeder capacity

• Standard, 50 sheets

Digital sending standard features

• Scan-to-E-mail with LDAP e-mail address lookup

Scan input modes

• From PC: Solution Center Lite (Windows Vista®, Windows® XP) or Device Stage (Windows® 7)
• TWAIN-compliant or WIA-compliant software

Copier specifications

Copy speed (normal)

Black: Up to 30 cpm
Color: Up to 30 cpm
(First Copy Out and Copy Speed measured using ISO/IEC 29183, excludes first set of test documents. For more information see hp.com/go/printerclaims. Exact speed varies depending on the system configuration and document.)

Copy resolution (black text)

• Up to 300 x 300 dpi

Copy resolution (color text and graphics)

• Up to 300 x 300 dpi

Copy reduce / enlarge settings

• 25 to 400%

Copies, maximum

• Up to 99 copies

Fax specifications

Faxing

• Yes

Fax transmission speed

33.6 kbps
(Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory.)

Fax memory

• Up to 250 pages

Fax Resolution Black (best)

• Up to 300 x 300 dpi

Fax Speed Dials, Maximum Number

• Up to 120 numbers

Fax Broadcast Locations

• 120

Power and operating requirements

Power

• 110-volt input voltage: 110 to 127 VAC (+/- 10%), 60 Hz (+/- 2 Hz), 12 A
• 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 2 Hz), 6 A

Power consumption

605 watts (Printing), 440 watts (Copying), 52 watts (Ready), 8.1 watts (Sleep), 0.3 watts (Off)

Energy efficiency

• ENERGY STAR® qualified
• CECP

Operating temperature range

• 10 to 30ºC

Recommended operating humidity range

• 20 to 60% RH

Acoustic pressure emissions bystander (active, printing)

52 dB(A)

Dimensions and weight

Minimum dimensions (W x D x H)

515 x 500 x 538 mm

Maximum dimensions (W x D x H)

825 x 915 x 948 mm

Weight

40.8 kg

Package weight

• 45.9 kg

What's included

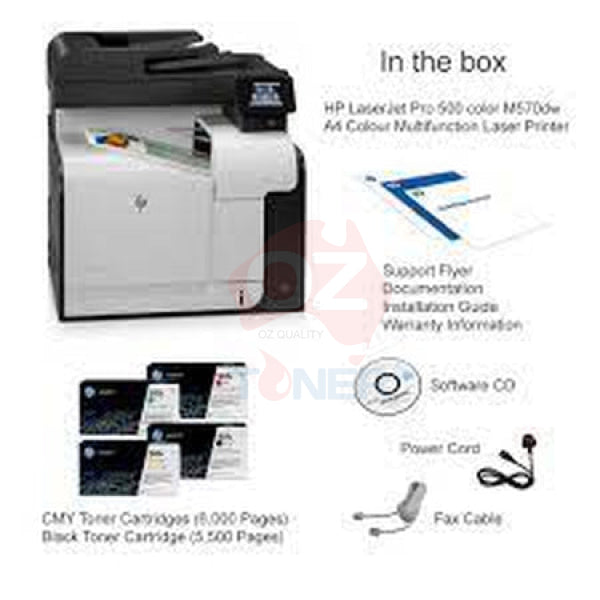

What's in the box

HP LaserJet Pro 500 color MFP M570dw
introductory HP Black LaserJet Toner Cartridge (~5500 pages), introductory Cyan, Magenta, and Yellow Toner Cartridges (~6000 pages)
Printer documentation and software on CD-ROM
Installation guide, Support flyer, Warranty card
Power cord
Fax cable
USB cable

Cable included

• Yes, 1 USB

Software included

• Windows: HP Installer/Uninstaller, HP PCL 6 print driver, HP WIA Scan Driver, HP TWAIN Scan Driver, HP Scan, HP Fax Setup Wizard, HP Send Fax, HP Fax Print Driver, Status Alerts, HP Update, DXP, ReadIris Software
• Mac: HP Installer/Uninstaller, HP Postscript driver, HP Scan, HP Setup Assistant, HP Fax Print Driver, HP Utility, HP Firmware Updater, ReadIris Software

Warranty

• One-year, on-site limited warranty
