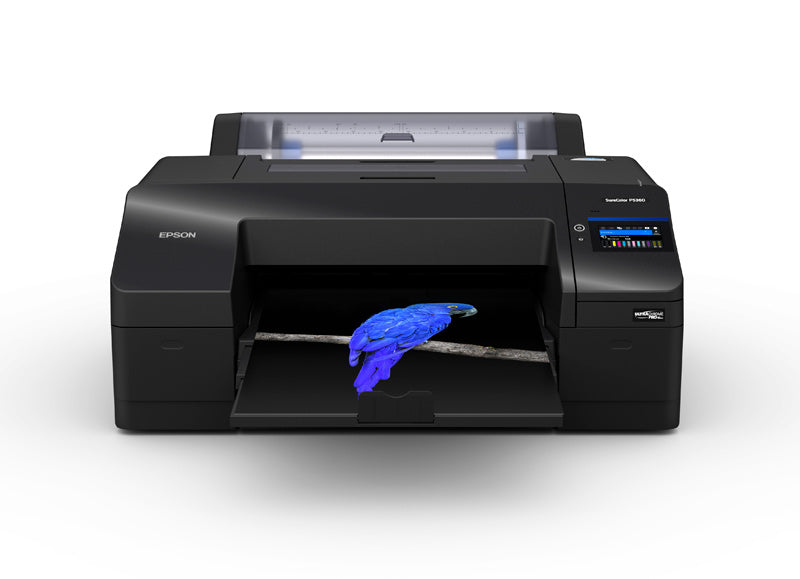

Epson Surecolor P5360 17" A2+ Photography & Fine Art Photo Inkjet Printer 432mm [C11CL14402]

If you create professional photographs and high-quality artwork, then the Epson SureColor Prographics range is the ideal choice. This series embodies the highest level of colour printing technology, boasting ultra-high resolution and an extensive colour range. It delivers exceptional results within a versatile, dependable and easily maintainable platform.

The SureColor P5360 stands out as a 17" (432 mm) Large Format Printer tailored for premium photo printing and fine art reproduction. It offers excellent versatility, accommodating a wide array of standard and specialized media in both roll and sheet formats. Equipped with Epson's innovative Micro Piezo printhead featuring Variable Sized Droplet Technology (VSDT), this printer excels in producing high-resolution images with remarkable detail and smooth tonal gradation.

One of its standout features is the utilisation of Epson's cutting-edge UltraChrome Pro10 all-pigment aqueous ink, which enables the SC-P5360 to generate gallery-quality black and white prints, along with vibrant and captivating colour prints. The introduction of violet ink enhances the printer's capability to render stunning blues and violets. Additionally, it streamlines the ink switching process by dedicating separate lines for all colours, eliminating the need to switch between Photo and Matte Black ink cartridges, ultimately saving time and reducing waste.

KEY FEATURES

Amazing Print Quality

With an impressive resolution of 5760 x 1440 dpi and the inclusion of Epson's innovative Micro Piezo printhead equipped with VSDT, this printer ensures a consistent and predictable output in ultra-high resolution. It excels in producing output with superior half-tones and optimally controlled ink density, delivering exceptional quality and precision.

Superb Print Quality and Colour

With the introduction of Epson UltraChrome Pro10 ink with violet represents a cutting-edge ink technology that sets industry standards. This ink formulation extends the colour gamut, resulting in the creation of vibrant and exceptionally rich prints that are truly remarkable. Additionally, the SC-P5360 excels in producing gallery-quality black-and-white images.

Black Enhance Overcoat

Our latest technology provides richer blacks, better contrast and better tonality while minimising gloss differential, especially in darker areas on glossy media. The Max Quality (Carbon Black) mode is tailored for professionals seeking even deeper black tones than what Max Quality mode provides. This is achieved by employing extremely small ink droplets (1.5 pl) in combination with the Black Enhance Overcoat.

Dedicated Black Inks

No more automatic ink switching between Photo Black and Matte Black. With dedicated channels for both inks in the printhead, you can start printing right away, avoiding cartridge switch delays. Photo Black produces rich blacks on photographic papers, while Matte Black excels on matte media for versatile printing.

Advanced Black and White Photo Mode

Professionals can choose pre-set modes like neutral, warm, cool or sepia for precise black-and-white prints. These modes are easy to adjust using customisable sliders and a colour tone wheel for fine-tuning. Custom settings can be saved and reused for consistent prints. The optional Epson Print Layout software, now available on Apple mobile devices, allows convenient image previews and printing from anywhere.

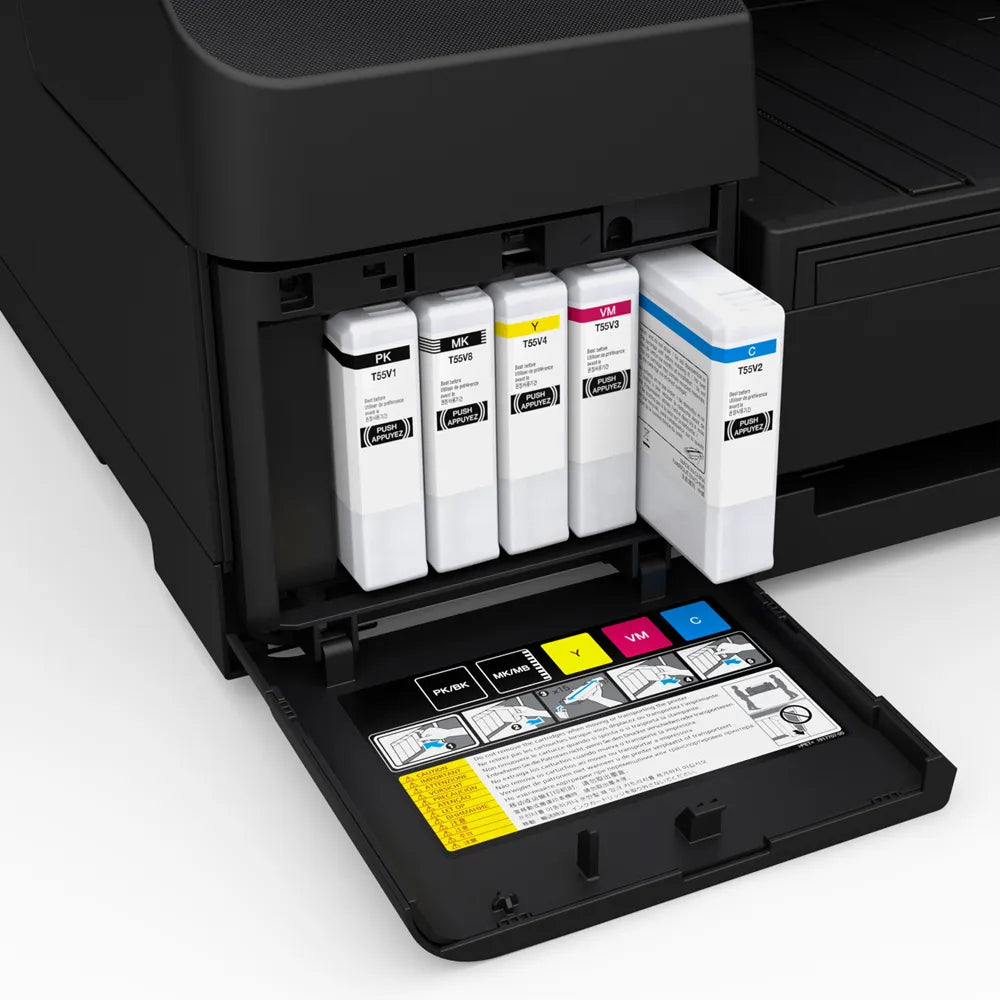

UltraChrome Pro10 Ink Cartridges

The new ink cartridges are available in 10 different colours, including four types of black and six additional colours, such as violet ink, which significantly expands the colour gamut in dark blue hues. The prints dry quickly to become water and scratch resistant. These inks also provide excellent lightfastness and, when properly displayed, can endure for a lifetime.¹

User-Friendly Design

This printer offers a range of user-friendly features, including semi-automatic roll media loading, adjustable tension control, an automated media management system and a durable auto cutter for efficient task handling. The 4.3" colour LCD touchscreen includes integrated help functions, ensuring ease of use. Furthermore, it provides flexible high-speed connectivity options for a seamless and hassle-free experience.

Wired or Wireless Connectivity

The SC-P5360 can connect via Ethernet, sharing the printer on your network or by the latest wireless standard, Wi-Fi 2.4 GHz and 5.0 GHz. Wi-Fi Direct means no router is required enabling users to easily connect to wireless networks in seconds, allowing printing from virtually any room in the office.

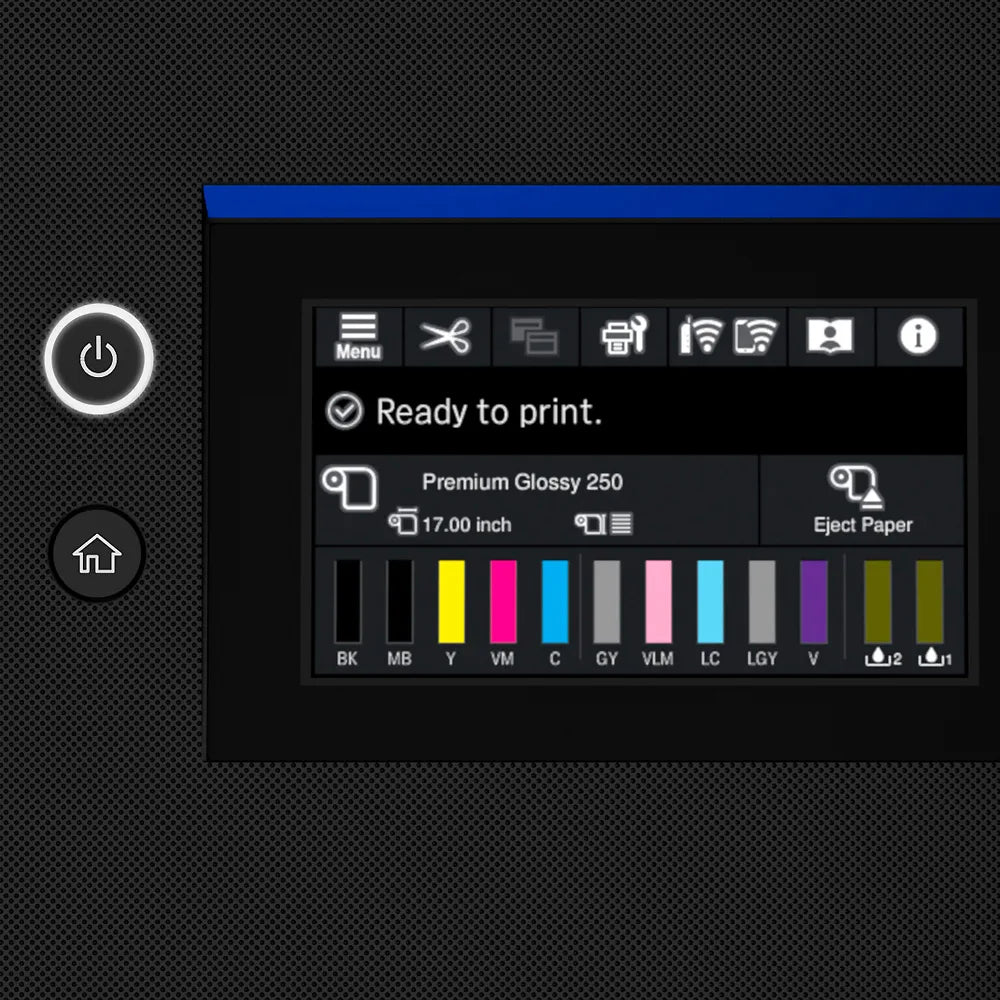

Customisable 4.3" Touchscreen with Gesture Control

The SC-P5360 has a built-in 4.3" touchscreen with a keypad and gesture navigation that features an impressive touch sensitive customisable LCD display panel which allows you to check the printer status, ink levels and perform routine maintenance tasks along with a variety of other tasks all with a swipe of the screen. You can even set the background to be the print you are printing for an added look.

Dependable Service Coverage

This printer has been designed to provide reliable operation with extended durability. It is backed with a comprehensive on-site warranty that covers everything including the printhead. Service is extendable up to a total of five years using optional CoverPlus. This model supports Cloud Solution PORT for remote web and app based operator monitoring along with enhanced Epson service support. A condition of CoverPlus on this model is that PORT be activated.²

Epson Print Layout Software

This plug-in for Adobe Photoshop, Lightroom and Nikon ViewNX-i provides a simple, easy and flexible tool for producing images to suit a variety of display requirements. Images can be printed individually or as a compound, either borderless or with a choice of border sizes and styles. An advanced gallery wrap function enables output that is suitable for mounting onto a frame. The program operates via intuitive and consistent controls that include slider bars and colour wheels for precise and easy adjustment. It includes a set of colour modes to create different finishes and moods as well as an Advanced Black and White mode. It includes a set of template layouts, supports ICC soft proofing, Colour Production, Preview, Custom media registration and Panorama layouts.

Designed for Business

The SC-P5360 operates efficiently with minimal power consumption, making use of 10 cost-effective ink cartridges, each with a capacity of up to 200 ml. It requires minimal user maintenance and offers the flexibility of selecting from a range of Epson CoverPlus service packs, extending coverage for up to a total of five years. Additionally, it seamlessly integrates with a wide selection of design, production, workflow management and RIP software options.

Flexible and Easy to Operate

The SC-P5360 is a desktop printer featuring a 17" (432 mm) wide carriage and four paper paths. It boasts compatibility with a diverse range of media, spanning from standard bond paper to high-quality photo and fine-art paper, as well as transparent film, translucent back-lit materials, canvas and specialised synthetics. For roll media, it offers semi-automatic spindle loading, automatic skew adjustment and a high-speed auto-cutter capable of cutting various stocks including canvas. Additionally, the printer supports sheet media and provides a straight-through paper path suitable for solid board media up to 1.5 mm thick. It enables edge-to-edge printing on both sheet and roll media and offers full borderless printing on roll stocks.

SIZE
Max Print Width	17 inch (432 mm)
Max Sheet Size	A2+
PRINT TECHNOLOGY
Printhead	Epson Micro Piezo
Print Modes	Uni & Bi-directional
Features	Variable Sized Droplet Technology (VSDT) Advanced Epson LUT Enhanced Colour Density and Gamut Enhanced Print Durability Black Enhance Overcoat
Nozzle Configuration	180 per colour
Active Channels	10 (Dedicated Pk / Mk ink lines)
Max Resolution	5760 x 1440 dpi
Min Droplet Size	1.5 pl
INK SYSTEM
Family	UltraChrome Pro10
Type	Aqueous all-pigment
Colours	10
Cartridge Size	200 ml
MEDIA SUPPORT
Format	Cut sheet and Roll
Size	8" x 10" (203 x 254 mm) - A2+ (432 x 610 mm) sheets 203-432 mm wide x 150 mm diameter 3" core / 103 mm diameter 2" core rolls
Thickness	0.08-1.5 mm sheets 0.08-0.5 mm rolls
Min Margins (Normal Printing)	Sheets – 3 mm top, 0 mm left and right, 3-14 mm bottom Roll – 3 mm top and bottom, 0 mm left and right
Borderless Printing (Supported on nominated widths only)	Roll media: 8" (203.2 mm)*, 10" (254 mm), 11" (279.4 mm)*, 14" (355.6 mm), 16" (406.4 mm), 420 mm*, 17" (431.8 mm), A4/A3/A3+/A2, 300 mm Cut sheets / Poster board: 10" (254 mm), 14" (355.6 mm), 16" (406.4 mm), 17" (431.8 mm), A4/A3/A3+, 300 mm * Requires a 2" core and use of the borderless print spacer supplied with the printer
Max Print Length	18 m
Loading	Front and rear manual, top tray and front cassette (up to 250 plain and 100 photo) sheets Top roll (spindle style with dual tension settings)
Roll Handling	Heavy-duty rotary auto-cutter (under 5s per page) Media Barcode System for roll management
Output	Front with extendable tray
Double Sided Printing	Supported via manual loading however please refer to the user guide and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
OPERATION
Control Panel	4.3" Touchscreen Colour LCD
Interface	High Speed USB 3.0 Ethernet 10Base-T / 100Base-TX, Wi-Fi, Wi-Fi Direct
Web Downloads (Windows)	Printer Driver, EpsonNet Print, EpsonNet Setup Manager, Epson Print Layout, Epson Edge Dashboard, Epson ColorBase3, Epson Media Installer, Epson Device Admin, Device Status System (DSS), Epson SureLab OrderController, Software and Firmware Updater, Epson Cloud Solution PORT
Web Downloads (Mac)	Printer Driver, Firmware Updater, EpsonNet Config SE, Epson Manual Launcher, Epson Print Layout, Epson Edge Dashboard, Epson Media Installer, Epson ColorBase3iOS, Epson Cloud Solution PORT
OS Compatibility	Mac OS X 10.9.5 or later Windows 11, 10, 8/8.1, 7
Third-party Software Compatibility	Compatible with a wide range of design, production, workflow management, and RIP software
Memory	1 GB
Language	ESC/P Raster
PERFORMANCE (A2 sheet)
Quality	1440 x 720 dpi	4.50 minutes
High Quality	1440 x 1440 dpi	6.55 minutes
Max Quality	5760 x 1440 dpi	13.50 minutes
Max Quality with Black Enhance Overcoat	5760 x 1440 dpi	19.55 minutes
Max Quality with Black Enhance Overcoat and Carbon Black	5760 x 1440 dpi	30.45 minutes
Figures represent print times only for the test sample image as shown, produced on Premium Glossy Photo Paper 170gsm. The total throughput time for a particular image will depend on a number of factors including the PC, software application, workflow configuration, networking, file format / size, image content, paper type and print mode.
ENVIRONMENT
Operational Temp	10° to 35° C (15-25° C recommended)
Operational Humidity	20 to 80% with no condensation (40-60% recommended)
Power Supply	100 - 240 V, 50 Hz - 60 Hz AC, 2 A
Power Consumption	42 W Operating / Standby 17 W / 2.4 W Sleep
Operating Noise	46 dB
Operational Space (W x D x H)	1163 x 1349 x 586 mm recommended (Additional space will be required at rear when using the straight through paper path)
PHYSICAL
Dimensions (W x D x H)	863 x 766 x 405 mm (Sheet feed and output tray closed)
Weight	53 kg (no ink)
WHAT'S IN THE BOX
Printer Power Cord Set of 80 ml inks (20-50% of each loaded cart will be used to charge the machine during initialisation) 1 x Maintenance Tank		1 x Borderless Maintenance Tank 1 x Paper Cassette Cover 1 x Roll-Feed Spindle 1 x Borderless Printing Spacer Installation / Safety Manual
Packaging (W x D x H)	Printer: 1032 x 912 x 593 mm, 65 kg
CONFIGURATION OPTIONS
C11CL14402	P5360 with 1 Year On-Site Warranty**
SCP53603YR	P5360 with 2 Years CoverPlus On-Site Service Pack (total 3 years cover)**
SCP53605YR	P5360 with 4 Years CoverPlus On-Site Service Pack (total 5 years cover)**
ACCESSORIES AND OPTIONS
C12C890121	Roll Paper Belt
C13T619000	Replacement Maintenance Tank
C12C815351	Replacement Auto Cutter Blade
C13T619100	Replacement Borderless Maintenance Tank
C12C811251	Additional/Replacement Dual Tension Roll-Feed Spindle
C13S400045	Cleaning Sheet Pack
YR2P5360	2 Years On-Site Epson CoverPlus – SCP5360**
YR3P5360	3 Years On-Site Epson CoverPlus – SCP5360**
YR4P5360	4 Years On-Site Epson CoverPlus – SCP5360**
YR5P5360	5 Years On-Site Epson CoverPlus – SCP5360**
