Description
A0 Large Format Multifunction Printers
SureColor Technical:
CAD & POS printing made Fast and Flexible
SureColor T5160M - 36" MFP |
[C11CJ54401]

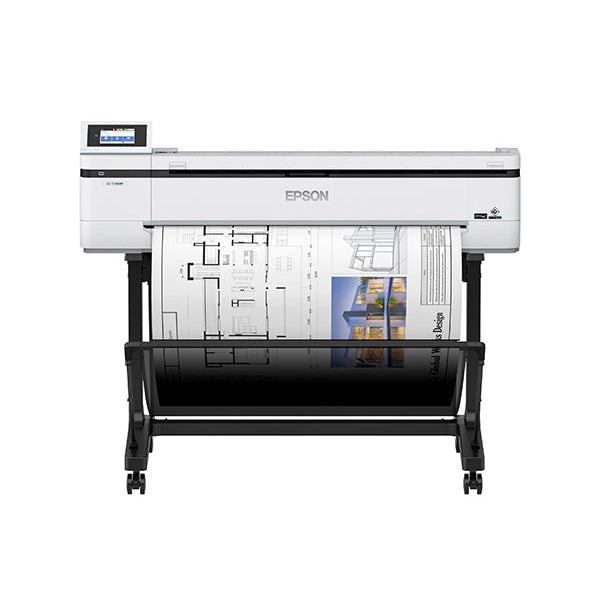

The SC-T5160M Wide format compact printer includes an integrated scanner. Easy to operate touch control screen. Provides the perfect solution for corporate, government, retail and education users. The scanner supports scan and copy functions
The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays.
The SC-T5160M is Epson first wide format compact printer to include an integrated scanner. We have incorporated technology developed and perfected in our professional document imaging division which provides a compact and integrated solution that is driven from a simple and easy to operate touch control screen. Developed for engineers, architects and the construction industry, it also provides the perfect solution for corporate, government, retail and education users. The scanner supports scan and copy functionality with network and direct USB file storage in a variety of formats.
The SC-T5160M features Epson's latest PrecisionCore print head and aqueous UltraChrome® XD2 pigment ink. It will print an A1 image in as little as 31s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer is shipped with a stand, has a very small footprint, and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications
- High Productivity prints an A1 image in as little as 34s, scans one in as little as 3.81cm/s or copy one in 60s2. Also includes an integrated auto-cutter
- High Precision 2400x1200dpi resolution Epson PrecisionCore print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
- High Durability all-pigment Epson UltraChrome XD2 ink dries almost instantly to be moisture & scratch resistant
- High Reliability solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 3 years1
- High Flexibility supports roll paper up to 36" (914mm) wide, sheet paper up to A0/B1 and has integrated scanner support for optional MFP functionality2
- High Convenience large 4.3" touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal while the floor standing model ships with a basket
- Low Running Cost ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80ml
- Easy Integration compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct & AirPrint support, HP-GL/2 & RTL emulation3
- Greater Connectivity Connect a USB thumb drive to the printer and print from/copy to PDF4, JPEG or TIFF images directly from/to the USB
- High Flexibility supports a variety of roll paper up to 36" (914mm) wide and sheet paper up to A0/B1
SIZE | |||
---|---|---|---|
Max Print Width | 36 inch wide (914mm) | ||
PRINT TECHNOLOGY | |||
Print Head | PrecisionCore TFP with VSDT and Auto Head Alignment | ||
Print Modes | Uni & Bi-directional | ||
Nozzle Configuration | 800 per colour | ||
Maximum Resolution | 2400dpi x 1200dpi | ||
Minimum Ink Droplet Size | 4.0pl | ||
SCAN TECHNOLOGY | |||
Technology | Contact Image Sensor (CIS) | ||
Light Source | Single | ||
Feed System | Sheet pass-through | ||
Maximum Resolution | 600dpi | ||
INK SYSTEM | |||
Family | Epson Ultrachrome® XD2 | ||
Type | All-Pigment Aqueous | ||
Colours | C+M+Y+K | ||
Cartridges | CMY 26/50ml K 50/80ml |
||
PERFORMANCE (per A1 Sheet) | |||
CAD A1 | 31sec | ||
Figures represent print times only for Epson test sample images as shown produced on plain paper in speed mode. Additional processing time may be required with individual results likely to vary depending on print mode, software, operating environment, media, data file size/type. | |||
SCAN PERFORMANCE | |||
Max Scan Speed | 3.81 cm/s or 1.5 ips (Colour) 11.43 cm/s or 4.5 ips (Mono) |
||
Max Copy Speed | 77s per A1 sheet Colour 60s per A1 sheet Mono |
||
Scan speeds represent feed times only for a standard CAD image on plain paper @200dpi in TIFF format and are provided for comparison purposes only. Additional processing will be required with the total time taken for completion dependent on the media & image type, media orientation, image processing, image scaling and other factors. Copy times represent the total scan, processing and print time for the image shown scanned long edge and printed on plain paper. Individual results will vary depending on media & image type, media orientation, image processing, image scaling and other factors. | |||
MEDIA SUPPORT | |||
Roll Format | Single roll top loaded spindle, 2" core, 0.05-0.21mm thick, 329-910mm wide, 119mm max diameter, 5.9Kg max weight | ||
Sheet Format | Top loaded A4-A0/B1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick | ||
Auto Cutter | Inbuilt rotary type | ||
Manual Double Sided Printing | Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. | ||
Output | Single sheet hold feature Supplied with an A4/A3 output tray Printer stand incorporates a media basket |
||
SCAN & COPY SUPPORT | |||
Media Handling | Single Sheet Front Loading | ||
Media Types | Plain, Matte, Recycled, Glossy paper, Film, Newspaper & Tracing Paper 0.064-0.8mm or 0.55mm (with optional carrier sheet which is used for Film, Thin paper or fragile materials) thick, 148mm-914mm wide, 148-2720mm long | ||
Document Types | Line & Text, Blueprint & Blueprint inverted, Tracing Paper & Poster | ||
Scan To Formats | JPEG, PDF & TIFF | ||
Copy Function | 1-99 Sheets 25-400% scaling, Auto Fit |
||
OPERATION | |||
Control Panel | 4.3" Colour LCD touch screen | ||
Control Code | ESC/P Raster, HP/GL/2 & HP RTL* 1 | ||
Connectivity | USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi Direct, Air Print | ||
Compatibility | Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later | ||
Memory | 1GB RAM | ||
Scanner Support | USB interface with integrated control & auto enlargement Supports 5x7", Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes Supports A2, US-C (17x22"), B2, US-D (22x34"), A1, B1, US-E (34x44"), A0 & custom (89-610mm wide) output page sizes Supports Epson DS-530, DS-6500 & DS6000 scanner models |
||
Physical (WxDxH) | Desktop: 1268 x 230 x 505 mm, 33kg (no consumables, media or options, no output tray, ASF closed) Floor Standing: 1,268 x 696 x 974 mm, 54.8 kg (no consumables, media or options, no output tray, ASF closed) |
||
ENVIRONMENT | |||
Operational Temp | 10° to 35° C | ||
Operational Humidity | 20 to 80% (no condensation) | ||
Power Supply | 100 - 240 V AC, 50/60 Hz | ||
Power Consumption | 28W Operating, 8W Standby, 1.6W Sleep | ||
Operating Noise | 49dB | ||
SHIPPING INFO | |||
Packaging (WxDxH) | Floor standing: 1393 x 598 x 653 mm, 74kg | ||

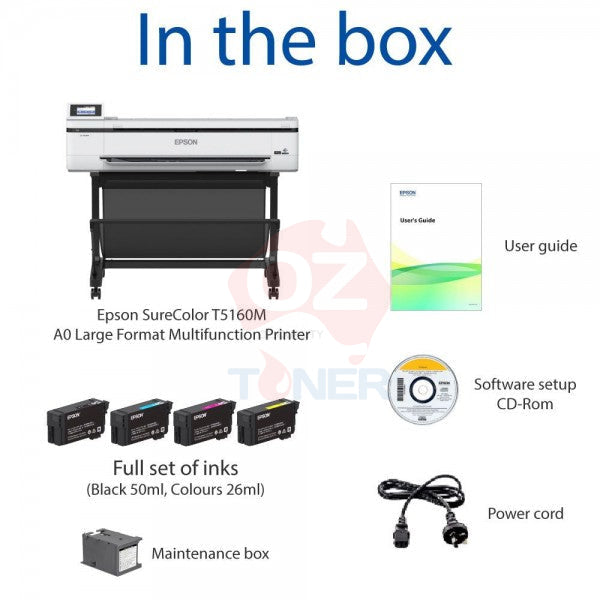

What in the Box | Printer, Printer Stand, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. | ||
Delivery & Install | Some assembly and configuration may be required. A significant proportion of the included ink will be required to ‘prime’ the printer and it is recommended that an additional set be purchased for production work. Delivery, de-boxing and package removal is not typically included but can be provided at an additional charge for most locations. | ||
Service & Support | Support and Service is provided via authorised Epson authorised Large Format Technical Dealers. If you have a problem with a SureColor Technical printer, a related option or consumable please contact your dealer for initial problem evaluation. Should a printer require service this will be provided by on-site free of charge within the period covered by your Warranty and any optional Service Pack. Note: Provision of service and support is subject to Large Format Printer Warranty terms and travelling charges may apply for equipment located outside major metro areas. | ||
CONFIGURATION OPTIONS | |||
SCT5160M1YR | Floor Standing with 1Yr On-Site Warranty | ||
SCT5160M3YR | Floor Standing with 2 Yr CoverPlus On-Site Service Pack (total 3 yrs cover)** | ||
OPTIONAL ACCESSORIES | |||
C12C933131 | Additional Roll Feed Spindle for T5160 (36") | ||
1YWTSCT5160M | 1 Yrs Epson CoverPlus On-Site Printer Service Pack** | ||
2YWTSCT5160M | 2 Yrs Epson CoverPlus On-Site Printer Service Pack** |
