Description

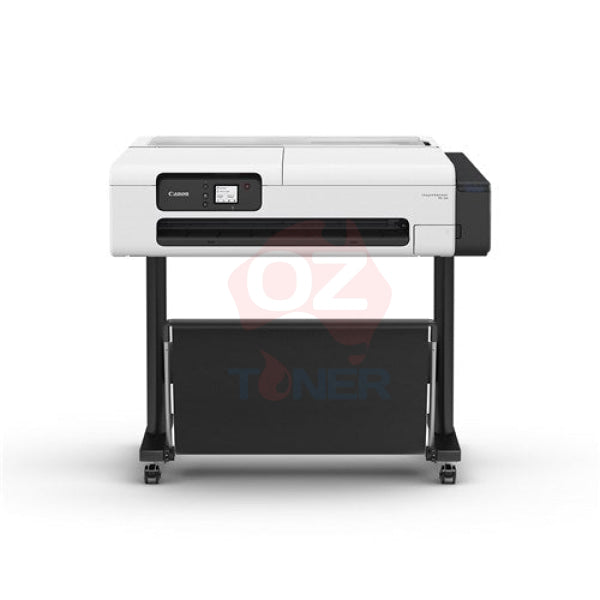

Canon iPF TC-20 A1/24" 4 Colour Graphics Large Format Printer with Stand
The TC-20 is Canon’s smallest large format printer. Designed for home or small offices, this device allows customers to print up to A1 size documents as well as being able to handle standard documents at A3/A4 sizes with it’s auto-feeder system. The TC-20 is also the first machine in the Canon large format range that uses ink bottles to refill the system rather than replacing ink cartridges. Better for the environment and our customers’ wallets!!
FREIGHT QUOTE REQUIRED (BULKY)
Product Features
- Space saving compact body - Can fit into small working spaces.
- 2-year warranty - Including print heads
- Spindleless roll holder for easy paper changes.
- All operations done from front - No need to move the printer to set media (roll or cut sheets), refill ink, or replace maintenance cartridges.

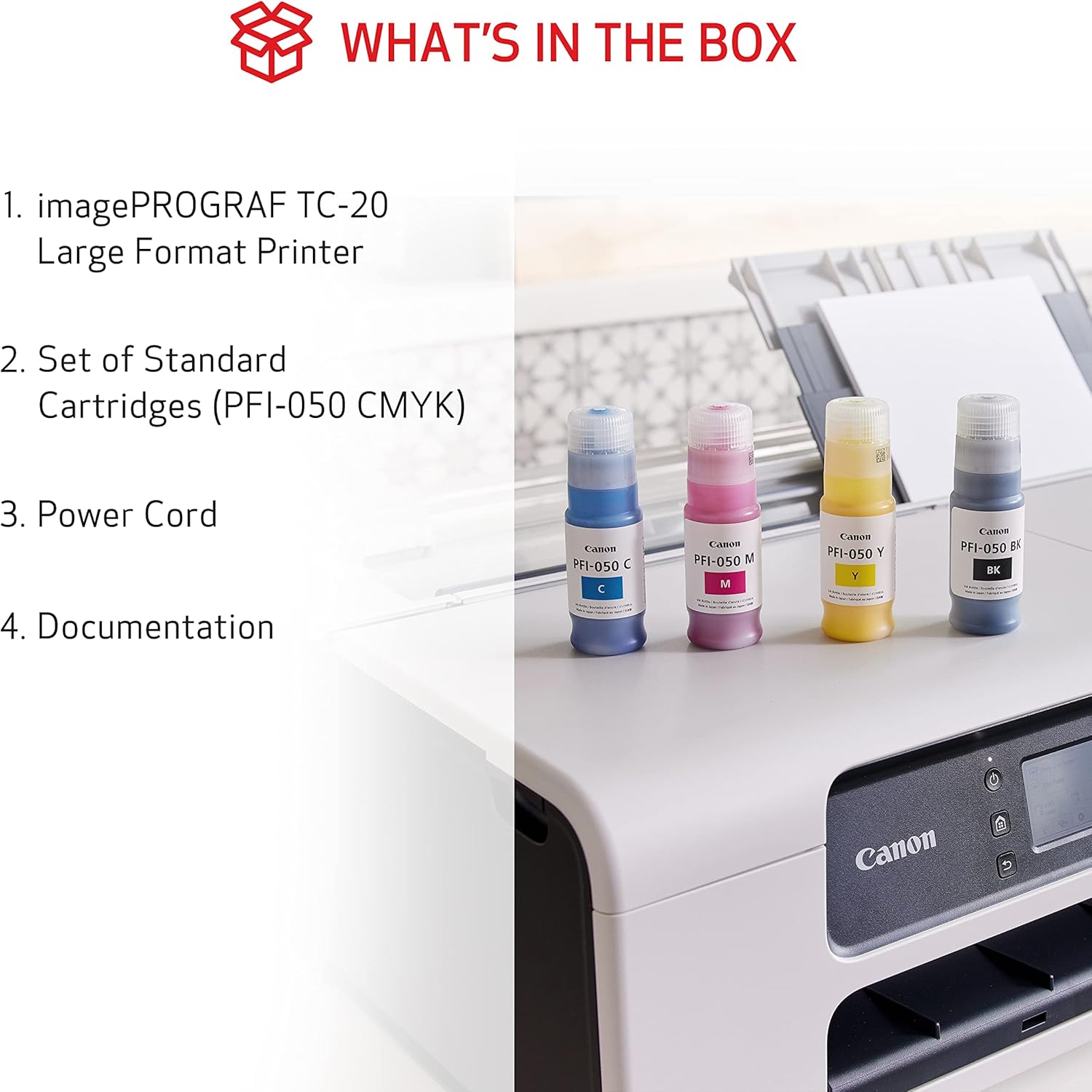

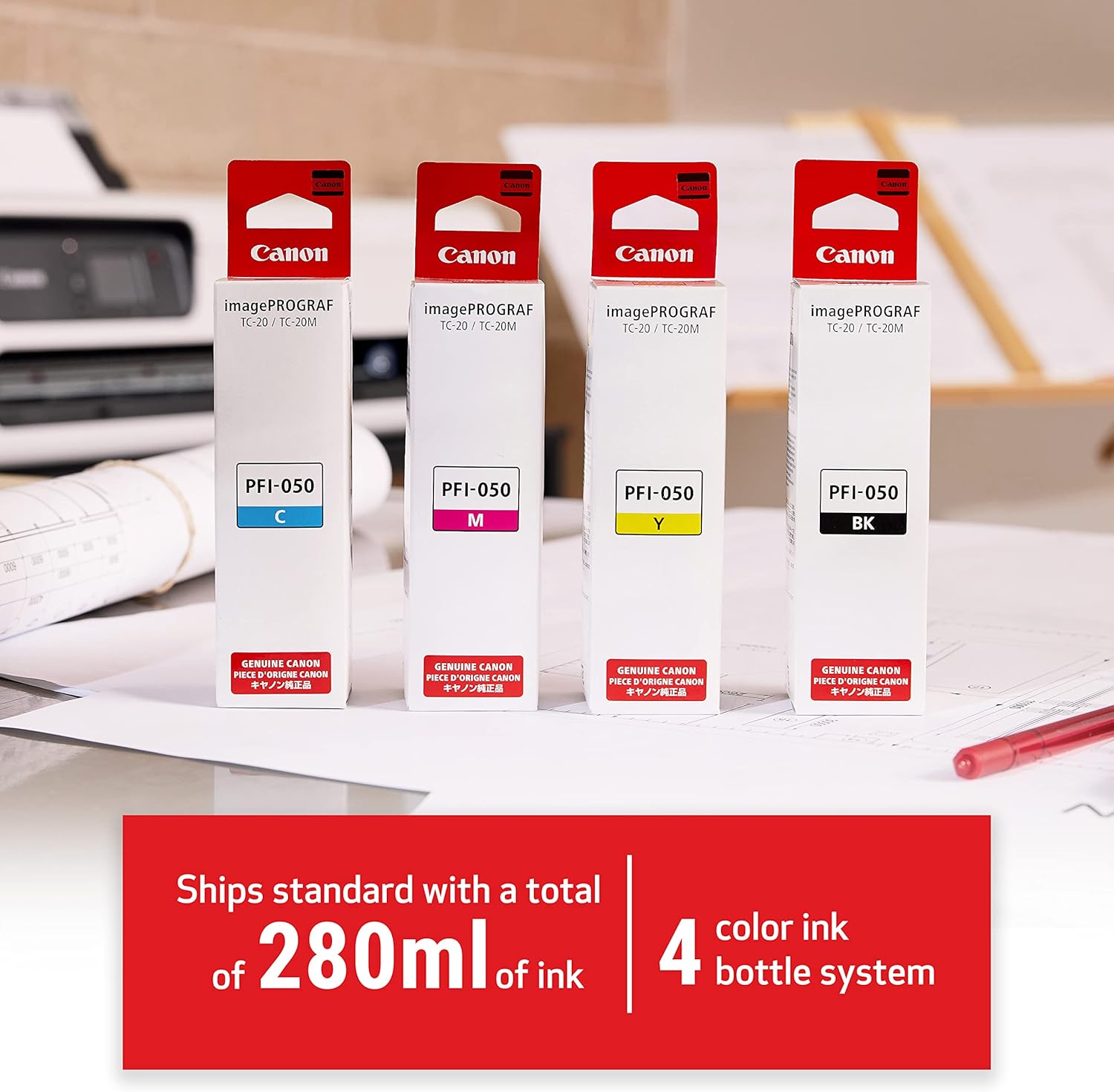

- The TC-20 comes with 70ml ink bottles x 4 inks plus a 50m roll of media, allowing you to assess your usage needs and budget for resupply.
- Auto-sheet Feeder allows up to 50 x A3 sheets or 100 x A4 sheets to be loaded at the same time as the roll media.
- Switching automatically between roll and cut sheet based on the jobs it receives.
- CSD-23 Stand included in bundle price.

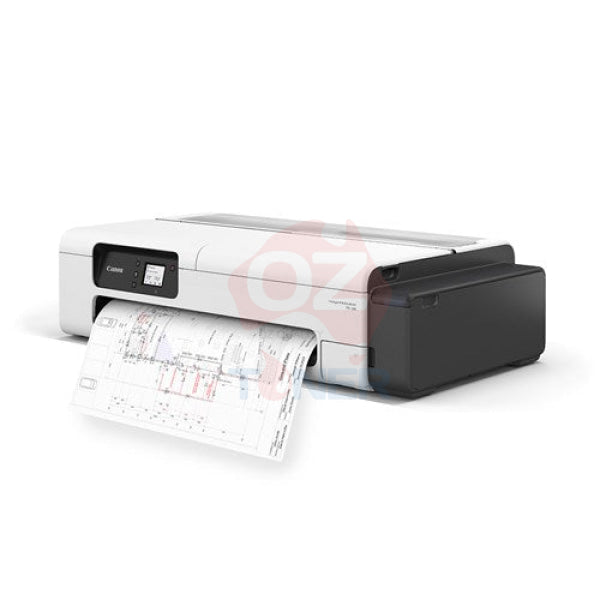

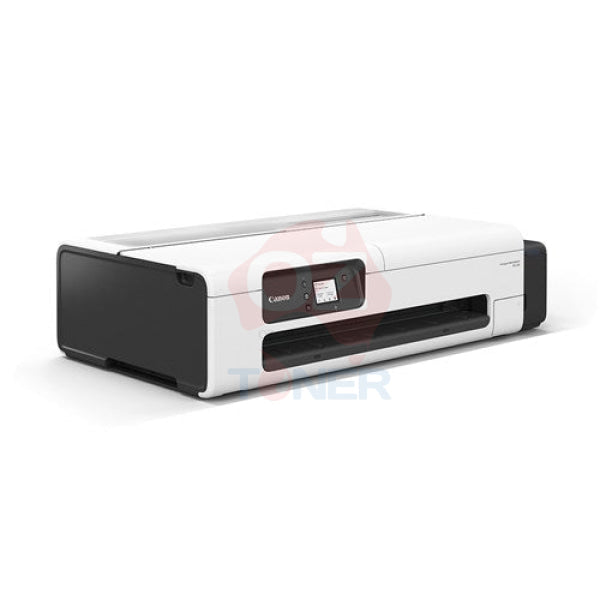

Designed for limited space environments, the Canon imagePROGRAF TC-20 is a compact 24" desktop printer with an automatic sheet feeder and a roll feed. It comes with four pigment ink bottles and is ideal for printing large, colorful flyers and posters for advertisements, signage, announcements, CAD renderings, and technical documents. It features a 2400 x 1200 dpi print resolution and uses precision FINE technology (Photolithography Inkjet Nozzle Engineering) to deliver sharp prints. For creating posters and flyers, you get free access to the web-based, template-driven PosterArtist application. For connectivity, the TC-20 offers built-in Wi-Fi, USB, and Ethernet interfaces. Wi-Fi allows you to print from virtually anywhere in the office.
The automatic sheet feeder supports up to 100 sheets of 8.5 x 11" letter-sized plain paper or 50 sheets of 11 x 17" paper for faster printing. The roll feed supports 12-24" wide rolls. The four-color pigment ink system provides crisp text and vibrant graphics, plus highlighter and water resistance. The ink bottles are keyed so that they only fit and fill the intended color ink tank. This design helps to create a spill-free process that makes re-filling a breeze.
The sheet feeder and roll feed are both top-loading with front-side output.
SPECIFICATIONS
Printer
Printer Type |
4-Colour 24" (610 mm) |
Number of Nozzles |
4,352 nozzles (BK 1,280 nozzles, C,M,Y: 1,024 nozzles each) |
Maximum Print Resolution |
2400 × 1200 dpi |
Nozzle Pitch |
1200 dpi (2 lines) |
Line Accuracy*1 |
± 0.1% or less |
Ink Capacity |
Sales Ink: 70 ml (BK, C, M, Y) |
Ink Type |
Pigment Ink |
Printer Language |
SG Raster (Swift Graphic Raster) |
Printing Solutions |
Canon PRINT Inkjet/SELPHY (iOS/Android), Canon Print Service (Android), Free Layout plus, PosterArtist, Direct Print Plus, PIXUS/PIXMA Cloud Link, Apple AirPrint, Mopria, ChromeOS |
Management Solutions |
Media Configuration Tool, Quick Utility Toolbox, Wi-Fi Connection Assistant, Printer Update Utility |
Standard Interfaces (Built-in) |
USB B Port (Series B, 4 pins) |
Standard Memory |
1 GB |
Print Speed*3
Plain Paper (CAD Drawing) |
32 sec (Draft) (Monochrome) |
Media Handling
Media Feed and Output |
|
Roll Paper |
One Roll, Top Load, Front Output |
Cut Sheet |
Top Load, Front Output*4 |
Media Width (Roll / Cut Sheet) |
Roll Width: 297 ~ 610 mm (A3 width to 24"); |
Media Thickness (Roll / Cut Sheet) |
0.08 ~ 0.28 mm |
Media Core Size |
2 inch core |
Min. Printable Length |
|
Roll Paper |
203.2 mm |
Cut Sheet |
203.2 mm |
Max. Printable Length |
|
Roll Paper |
4 m*5 |
Cut Sheet |
432 mm |
Maximum Outer Roll Diameter |
110 mm or less |
Borderless Printing Width |
NA |
Margins (Recommended Area) |
|
Roll Paper |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
Cut Sheet |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
Margins (Printable Area) |
|
Roll Paper |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
Cut Sheet |
Top/Bottom: 5 mm, Left/Right: 5 mm*6 |
Dimensions & Weight
Dimensions (W x D x H) |
|
Main Unit |
968 × 545 × 395 mm (Auto Sheet Feeder Closed) |
Main Unit + Printer Stand + Basket (SD-24) |
968 × 870 × 874 mm (Basket Opened) |
Main Unit + Desktop Basket (BU-06) |
968 × 825 × 965*7 mm (Basket Opened) |
Weight*8 |
|
Main Unit |
32 kg |
Main Unit + Printer Stand + Basket (SD-24) |
40 kg |
Main Unit + Desktop Basket (BU-06) |
33 kg |
Packaged Dimensions (W x D x H) |
|
Main Unit |
1120 x 726 x 406 mm |
Stand + Basket (SD-24) |
1055 x 824 x 268 mm |
Desktop Basket |
798 x 301 x 111 mm |
Packaged Weight |
|
Main Unit |
43 kg |
Stand + Basket (SD-24) |
16 kg |
Desktop Basket |
1.8 kg |
Power & Operating Requirements
Power Supply |
AC 100 - 240 V, 50 - 60 Hz |
Power Consumption |
|
Printing*9 |
28 W or less |
Sleep Mode*9 |
1.8 W or less |
Power Off |
0.3 W or less |
Operating Environment |
|
Temperature |
15 ~ 30°C |
Humidity |
10 ~ 80% RH (no dew condensation) |
Acoustic Sound |
|
Acoustic Power*10 |
Operation: Approx. 6.0 Bels |
Acoustic Pressure*10 |
Operation: Approx. 42.5 dB (A) |
Accessories
Printer Stand (Optional) |
SD-24 |
Desktop Basket |
BU-06 |
Consumables
Ink Bottle |
PFI-050 (70 ml) |
Print Head |
PF-08 |
Cutter Blade |
NA |
Maintenance Cartridge |
MC-32 |
- User adjustments necessary. Printing environment and media must match those used for the adjustments. CAD paper required: Plain paper, coated paper.
- IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP) supported.
- Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations.
- Comes with optional printer stand (SD-24) and desktop basket (BU-06).
- Varies according to the OS and application.
- Some photo modes - Top: 30 mm, Bottom: 30 mm.
- Height above which desktop basket’s cloth does not touch the floor when opening the desktop basket.
- Including shaftless roll holder & print head, excluding ink bottles.
- Using wired LAN.
- Measured based on ISO7779 standard by using 24 inch Standard Plain Paper with the following settings. Canon Standard Plain Paper, Standard mode, Line Drawing/Text mode.
