Description

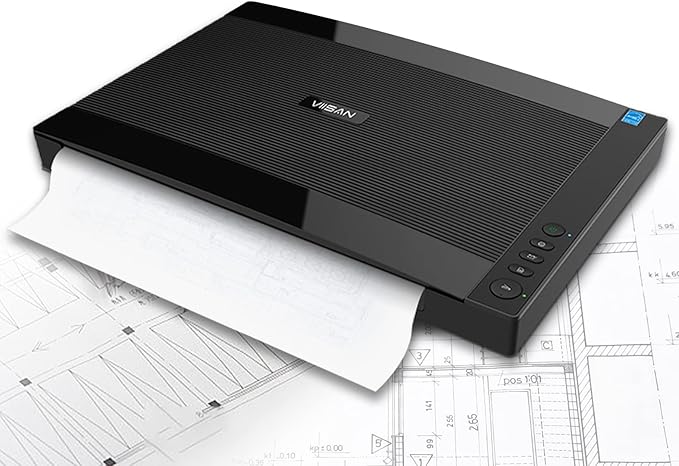

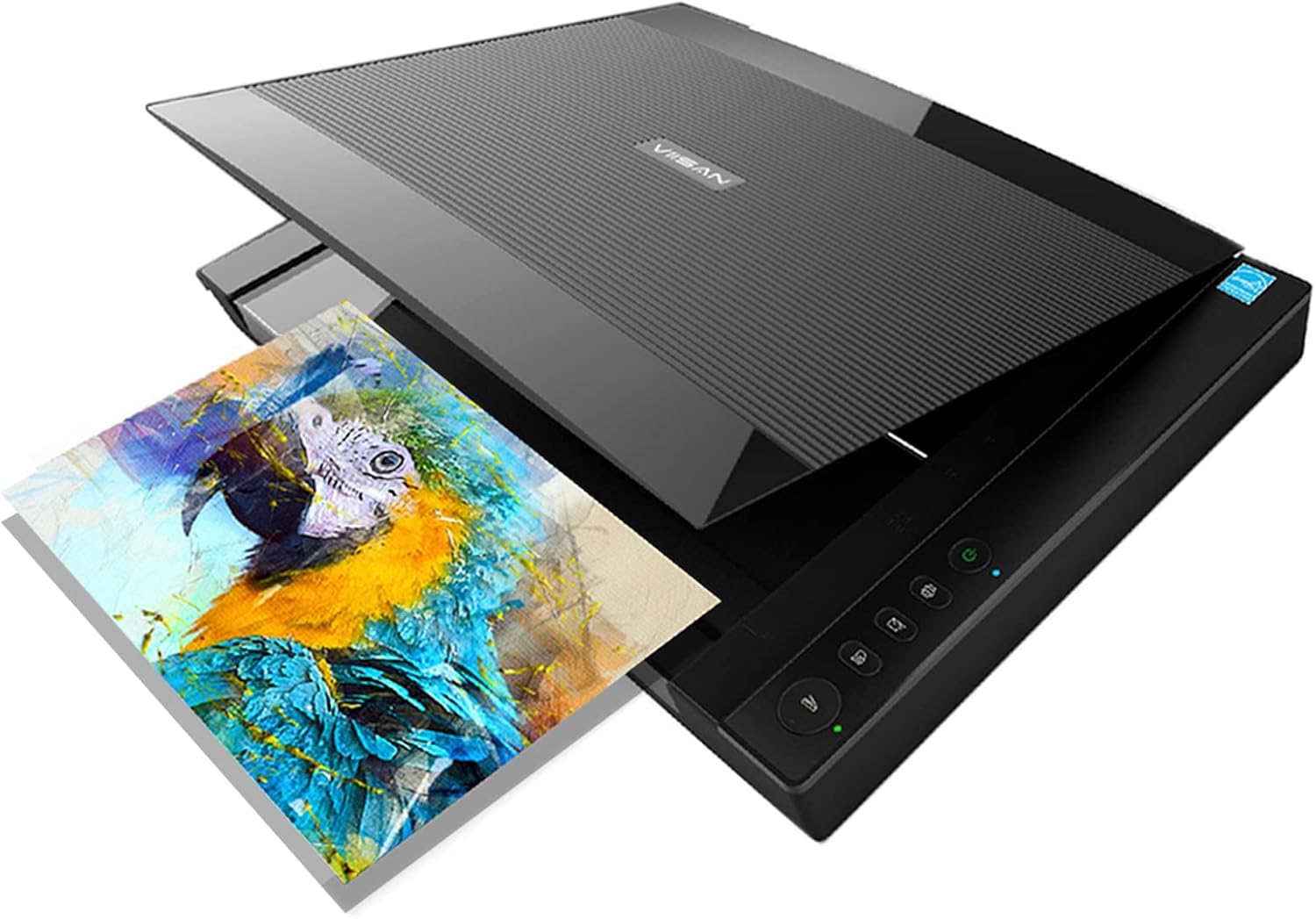

VIISAN VF3120 A3 High Speed Flatbed Frameless Document Scanner – 1200dpi
The VIISAN VF3120 is a high-speed A3 flatbed scanner designed for scanning large documents, books, photos, artwork, magazines, newspapers, certificates and CAD drawings. With a maximum scanning area of 304 × 426 mm (12" × 17"), it is an excellent solution for offices, schools, libraries, architects, designers and businesses requiring reliable large-format document digitisation.
Featuring a frameless and narrow-edge design, the VF3120 makes it easier to position large originals and bound materials on the scanning surface. Its CIS sensor and three-colour RGB LED light source provide up to 1200 × 1200 dpi optical resolution, while an A3 colour page can be scanned in approximately 8 seconds at 200 dpi.
The VF3120 supports Windows TWAIN and WIA drivers and macOS Image Capture (ICA), making it suitable for both Windows and Mac environments. Four convenient one-touch buttons provide quick access to Scan, PDF, Email and Print functions.
Key Features
- A3 Large Format Flatbed Scanner – scans documents up to 304 × 426 mm (12" × 17")
- 1200 × 1200 dpi Optical Resolution for detailed document, photo and artwork scanning
- Fast A3 Scanning – approximately 8 seconds per A3 colour page at 200 dpi

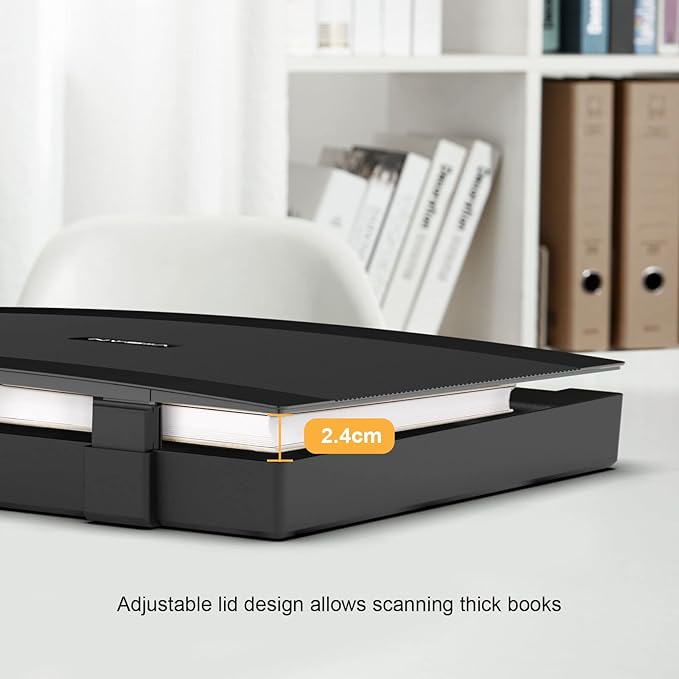

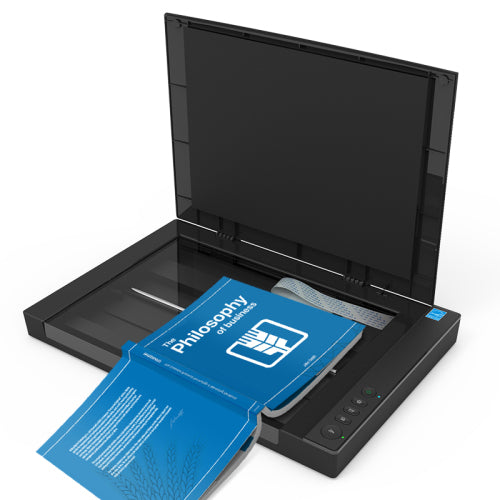

- Frameless & Narrow-Edge Design – ideal for books, magazines and oversized documents
- Colour CIS Sensor with three-colour RGB LED light source
- 48-bit Colour Input / 24-bit Colour Output
- Auto-Scan Function for more efficient continuous scanning

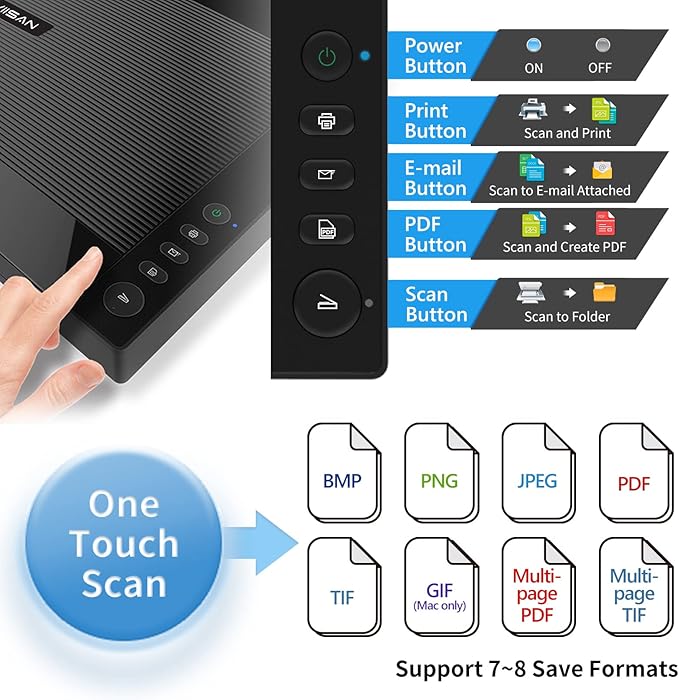

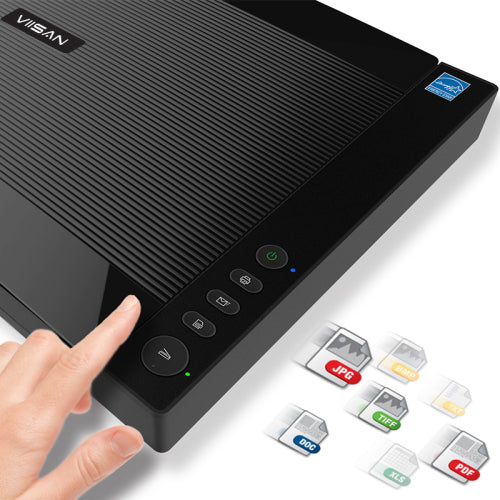

- Four One-Touch Buttons – Scan, PDF, Email and Print
- Windows TWAIN & WIA Support
- Mac Compatible via macOS Image Capture (ICA) driver
- OCR Support via bundled OCR engine
- High-Speed USB 2.0 connection
- LED Technology – no warm-up time required
- Supports BMP, PNG, JPEG, PDF, Multi-page PDF and TIFF output formats
Ideal For
The VIISAN VF3120 is particularly suitable for:
- A3 business documents and records
- Books, magazines and newspapers
- Artwork, drawings and illustrations
- Photos and photo albums
- CAD drawings and technical documents
- Certificates and historical documents
- Schools, universities and libraries
- Archives and document digitisation projects
VIISAN VF3120 vs VF3240 – What's the Difference?
The VF3120 and VIISAN VF3240 A3 Flatbed Scanner share the same A3 scanning format, frameless design, CIS technology and convenient Scan/PDF/Email/Print workflow. The main differences are scanning speed and optical resolution.
| Feature | VIISAN VF3120 | VIISAN VF3240 |
|---|---|---|
| Scanner Type | A3 Flatbed | A3 Flatbed |
| Optical Resolution | 1200 × 1200 dpi | 2400 × 2400 dpi* |
| A3 Colour Scan Speed @ 200dpi | Approx. 8 seconds | Approx. 4 seconds |
| Maximum Scan Area | 304 × 426 mm | 304 × 426 mm |
| Sensor | Colour CIS | Colour CIS |
| Colour Depth | 48-bit input / 24-bit output | 48-bit input / 24-bit output |
| Design | Frameless / Narrow Edge | Frameless / Narrow Edge |
| Windows | TWAIN / WIA | TWAIN / WIA |
| Mac | ICA / Image Capture | ICA / Image Capture |
| Best For | General A3 document, book and artwork scanning | Higher-volume and higher-resolution professional scanning |
*Maximum resolution depends on operating system, scanning area and VIISAN software settings.
For general office, education, book and large-format document scanning, the VF3120 provides excellent A3 capability with up to 1200dpi optical resolution. Customers who require faster throughput or higher-resolution image capture should consider the VIISAN VF3240, which scans an A3 colour page at 200dpi in approximately 4 seconds and offers up to 2400dpi optical resolution.
For a more detailed comparison, read our VIISAN VF3120 vs VF3240 A3 Scanner Comparison Guide.
Technical Specifications
| Scanner Type | A3 High Speed Flatbed Scanner |
| Optical Sensor | Colour CIS |
| Light Source | Three-colour RGB LED |
| Optical Resolution | 1200 × 1200 dpi |
| Scanning Speed | Approx. 8 sec / A3 page at 200 dpi |
| Colour Depth | 48-bit input / 24-bit output |
| Grayscale | 16-bit input / 8-bit output |
| Maximum Scan Area | 304 × 426 mm (12" × 17") |
| Function Buttons | Scan / PDF / Email / Print |
| Output Formats | BMP, PNG, JPEG, PDF, Multi-page PDF, TIFF, Multi-page TIFF |
| Interface | High-Speed USB 2.0 |
| Windows Driver | TWAIN / WIA |
| Mac Driver | Image Capture (ICA) |
| Bundled Software | Scanner Driver, ViiScan, Event Utility, OCR Engine |
| Power Consumption | Approx. 8.5W |

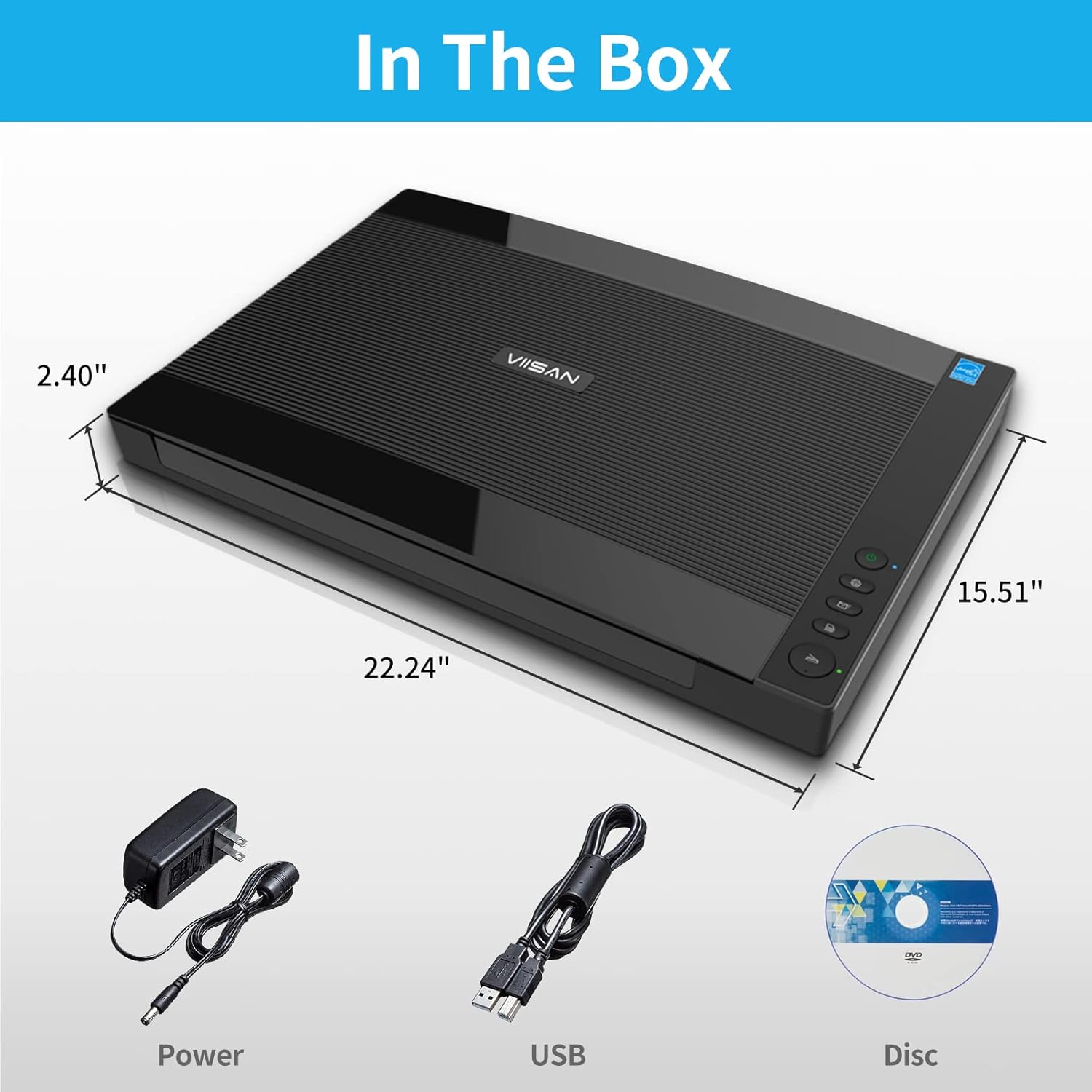

| Dimensions | 565 × 394 × 61 mm |
| Weight | Approx. 4.3 kg |
Shop A3 & Flatbed Scanners
Explore more A3 Document Scanners or browse our complete range of Flatbed Scanners at OzToner.
VIISAN VF3120 A3 Flatbed Document Scanner 1200dpi VIISAN 3120 A3 Flatbed Scanner, 1200 DPI, CIS Sensor, Scan 12" x 17" in 8 sec, Frameless, Auto-Scan, Document & Photo & Book Scanner, Design for Library, School and Soho. Supports Windows & Mac
Technical Details
| Scanner Type | A3 High Speed Flatbed Scanner |
|---|---|
| Optical Sensor | Color CIS |
| Light Source | Three-color (RGB) LED |
| Optical Resolution | 1200 x 1200 dpi Note:WIA only support to 600 dpi |
| Scanning Speed | 8 sec. / A3 page at 200 dpi |
| Color Bit Depth | Color 48-bit Input / 24-bit Output Gray 16-bit Input / 8-bit Output |
| Max. Scanning Area | 304 x 426 mm (12" x 17" ) |
| Function Buttons | SCAN / PDF / E-Mail / PRINT |
| Output format | BMP、PNG、JPEG、Multi-page PDF、PDF、Multi-page TIF、TIF |
| Interface | High Speed USB 2.0 |
| Power Supply | 12 VDC/2A, 24W (Input: 100~120VAC or 200~240VAC, 50~60Hz) |
| Power Consumption | 8.5W |
| Power Saving | 15 min auto power off |
| Operating Temperature | 10℃ to 35℃ |
| Operating Humidity | 10% to 85% |
| Dimensions | 565 x 394 x 61mm |
| Weight | Approx. 4.3 kgs (9.4 lbs) |
| Driver Protocol | Windows: TWAIN and WIA Mac OS: Image Capture (ICA) driver Linux: XSANE |
| Bundled Software | Scanner Driver、ViiScan、Event Utility、OCR Engine |
| Operating Systems | Windows® 11 / 10 / 8.1 / 7 Mac OS 10.15 or later for Image Capture (ICA) driver only Linux Ubuntu 18.04 or 20.04 |










VF Series A3 Flatbed Scanners
Now Compatible with M1-Powered Macs
The VF series A3 flatbed scanner is ready to support M1 Macs through the Image Capture (ICA) driver in macOS.
To download the latest Mac ICA driver, please visit our official website at http://en.viisan.com/download/type2.html
